DOUBLE HEAD MANUAL BOTTOM SAW DIA 500 X 6000

  • image
  • image
  • image
  • image

Description:

DESCRIPTION

Main features

1. Mainly used for aluminum alloy profiles, and also used for cutting plastic profiles

2. Adopts the hard quality alloy saw blade, the outside diameter can reach 20’’, the linear speed is high, the accuracy of processing is high

3. When it works, two saw blades can cut profiles simultaneously or separately

4. The saw blade can be adjusted in 90o ~45o depend on require

5. The machine is equipped with digital display device, so it is more suitable for cutting aluminum alloy profiles

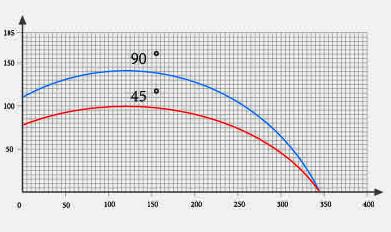

Main Technical Parameter Cutting Motor Power 2*2.2kw Input voltage 440 V 50hz Main Rotary Speed 2840r/min Cutter Diameter Inner 30mm Outside 500mm Cutting Length Min 550mm(45°) Min480mm(90°) Max6000mm Cutting Height Max 114 mm ?45o ? Max 150 mm ?90o? Contour dimension 7550*1300*1360mm
