DESCRIPTION

The crack mill basis + the linear guides basis are machined the crack mill and the linear guides connection holes are drilled tapped with 5 Axis Metal Processing Center. Electrostatic Powder Coated Painting for the entire machine. Saw blade diameter 500 mm.

Net cutting length of 4.000 mm that can be extended to 7.500 mm with software support.

Cutting heads tilting 90 degrees and 45 degrees outwards pneumatically through a cylinder and in-between angles are adjusted manually.

Minimum cutting length of the bottom part of the profile when the heads tilt 45 degrees outwards: 630 mm.

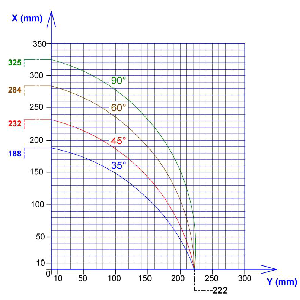

Cutting width in 45 degrees: 222 mm.

Cutting width in 45 degrees: 222 mm.

10.2TFT-LCD Touch panel.

PLC Controller

Movable head is moving on crack mill + linear guides with brushless servo motor.

The height of the cut profile will be entered to the controller for the calculation of the cut size.

Cutting list read up to 99999 profiles.

3, 0 kW (4 Hp) 2.800 rpm motors.

Protection covers moving up and down automatically 2 pieces of horizontal and 1 piece vertical clamping pistons for each head.

Aluminum profile cutting optional. Hydro-Pneumatic cylinder modification + Pulse spray mist coolant.

Roller conveyor system mounted beside the movable head. Colored cables inside the electrical cabinet.

Movable dust extraction drawers placed under the machine.

Automatic tilting of the heads from 22.5 to 135 degrees through servo motors and the upgraded 3 Axis CNC controller.

Automatic cutting in different sizes and different angels with automatic feeding mechanism.

Height measurement probe + the software

Repetitive cut in fixed 90 degrees with Variable or Fixed length.

Automatic Extended Cut.

Intermediate support pneumatic cylinders of 2.000 mm.

And the protection shield with 2 sets of buttons.

Dust trays under the machine. Complete set.
