SC-400-P DOUBLE HEAD CUTTING MACHINE DIA 450 MM


Description:

DESCRIPTION

Pvc 45 degree-90 degree and make precise cuts in the double sided intermediate

The Machine at 45 degree-90 degree automatic,easy adjustment opportunities in other intermediate

PLC control system

500 steps including cutting the number and size of memory capacity

6mtr program to automatically cut the long profile of 4mtr

Multi language support

Left head hard right on the head is moving

Single head hard and dual-head operation possibility

Cut-profile support from the head unit

Do not transport conveyor system moving head profile

Adjustable cutting speed

Diamond saw blade diameter 450mm

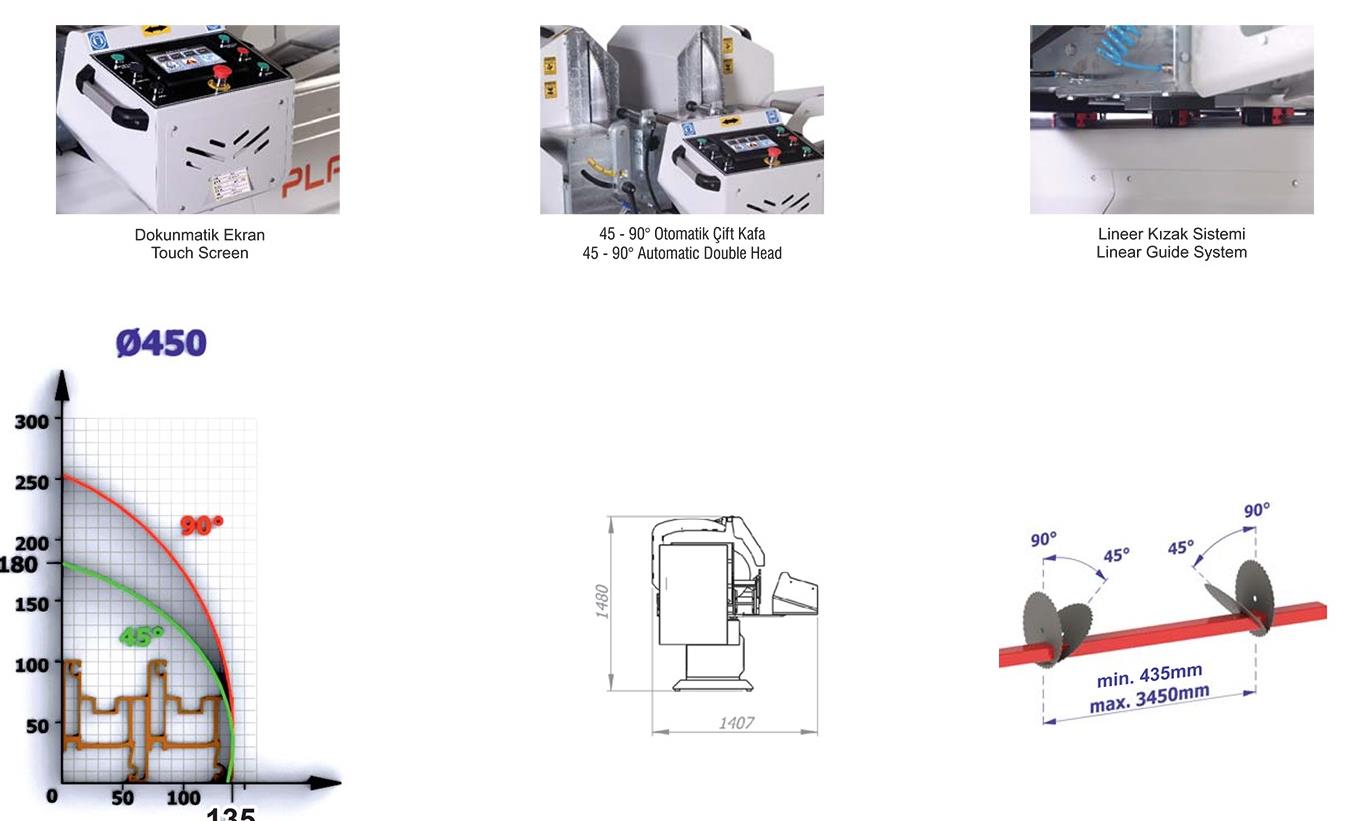

Saw outputs from 135 mm and allows double 62mmx2 profile cutting

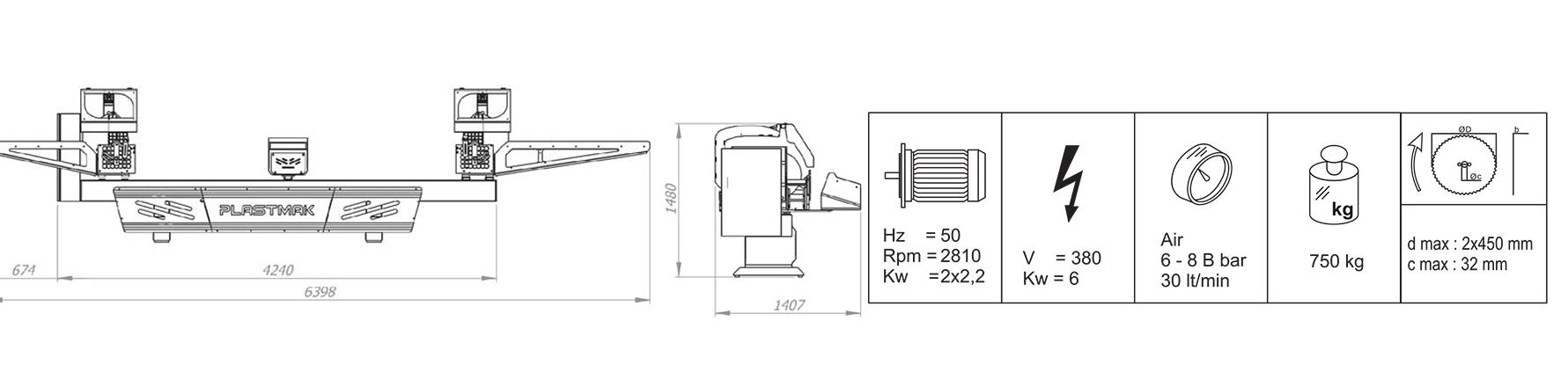

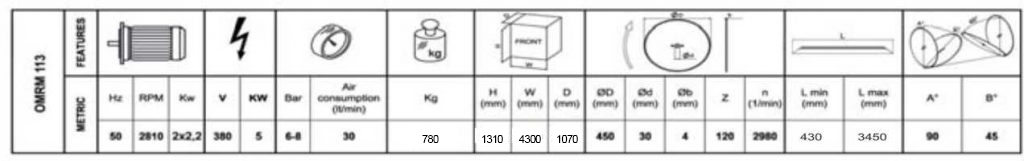

TECHNICAL SPECIFICATION

Power supply: 440 V, 3ph, 50-60 Hz -

Power output: 5 kW

Motor : 2x2.2kw,2810 rpm

Spindle speed: 2,810 r.p.m.

Air pressure: 6-8 bar

Air consumption: 30 l/min.

Blade Dia - 450 mm

Blade inner Dia - 30mm

Rpm /min - 2980

Motor rpm - 2810

Options :

Cutting Optimization : A machine data transfer from the computer to the Ethernet module

High precision servo motor drive system (+/-0 1 mm)

High precision servo motor drive system (+/-0 1 mm)

LCD control panel

Fixed Head (right) profile conveyors systems

Barcode label printer
