Description:

DESCRIPION

Main features

1. It is used for cutting aluminum alloy and curtain wall profile

2. It has features of high efficiency, perfect safe guards and is suitable for large-scale production

3. The CNC technology can cut different standards profile automatically

4. Adopt steel structure design to ensure excellent reliability, no easy to be out of shape

5. The main shaft with hi-precision makes the saw operating stable and the cutting surface smooth

6. The imported guide rails and the linear motion pair and ball screw can realize high precision and accurate location

7. The head return automatically

8. The two-way location and clamping features with high precision and steadiness

9. The well-sealed safeguard of saw blade prevents the cutting bits from flowing everywhere

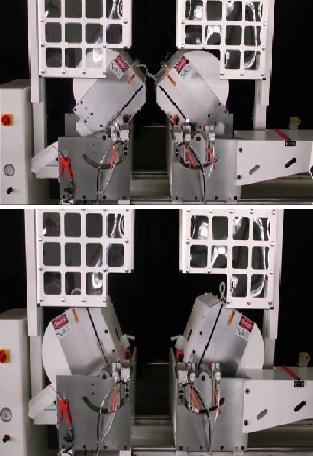

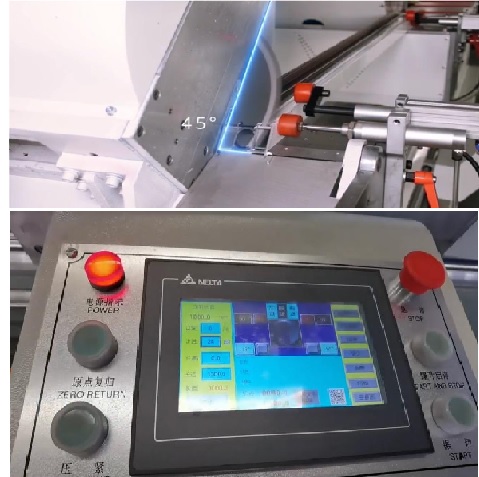

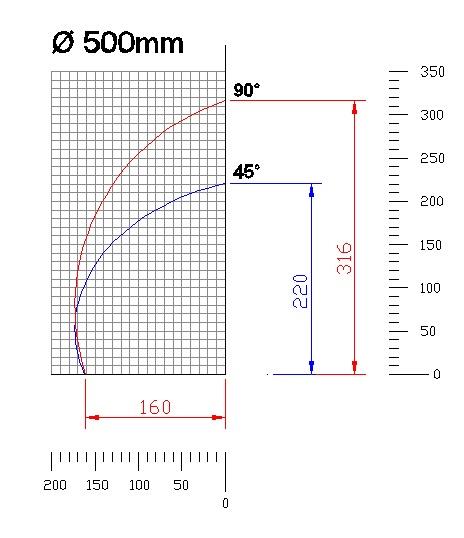

10. The cutting angle can change in +45 , 90 AND -45 DEGREES 11. The head movement is controlled by PLC and move is automatic, not control by selector switch, servo motor, ball screw, air-hydraulic Clamping cylinder Processing accuracy Repeat locating length ±0.2mm Cutting profile surface plane ?0.10mm Cutting angle tolerance ±5' Main Technical Parameter Cutting Motor Power 2 x 2.2kw+1.5kw Input voltage 440V 50hz Main Rotary Speed 3850r/min Cutter Diameter Inner 30mm Outside 500mm Cutting Length Min 435mm Max5000mm Cutting Height 90°300mm 45°200mm Contour dimension 6560 x 1750 x 1950mm Weight 1100 Kg
