DOUBLE HEAD CUTTING MACHINE LJP - 400 * 3500

  • image
  • image
  • image
  • image

Description:

EQUIPMENT FEATURES:

1.This machine is used for processing the aluminium and pvc profiles at angles of 45 , 90 .

2. The linear feding work way is adopted .

3. Pneumatic driving sysytem is used in profile clamping and cutting .

4.It has the features of easy operation and hight accurancy .



TECHNICAL DATA

Input voltage 380V 50HZ

Air pressure 0.5 - 8Mpa

Air consumption 100L/min

Input power 2x1.5 kw

Cutting angle 90 - 45

Saw blade specification 400 x 30 mm

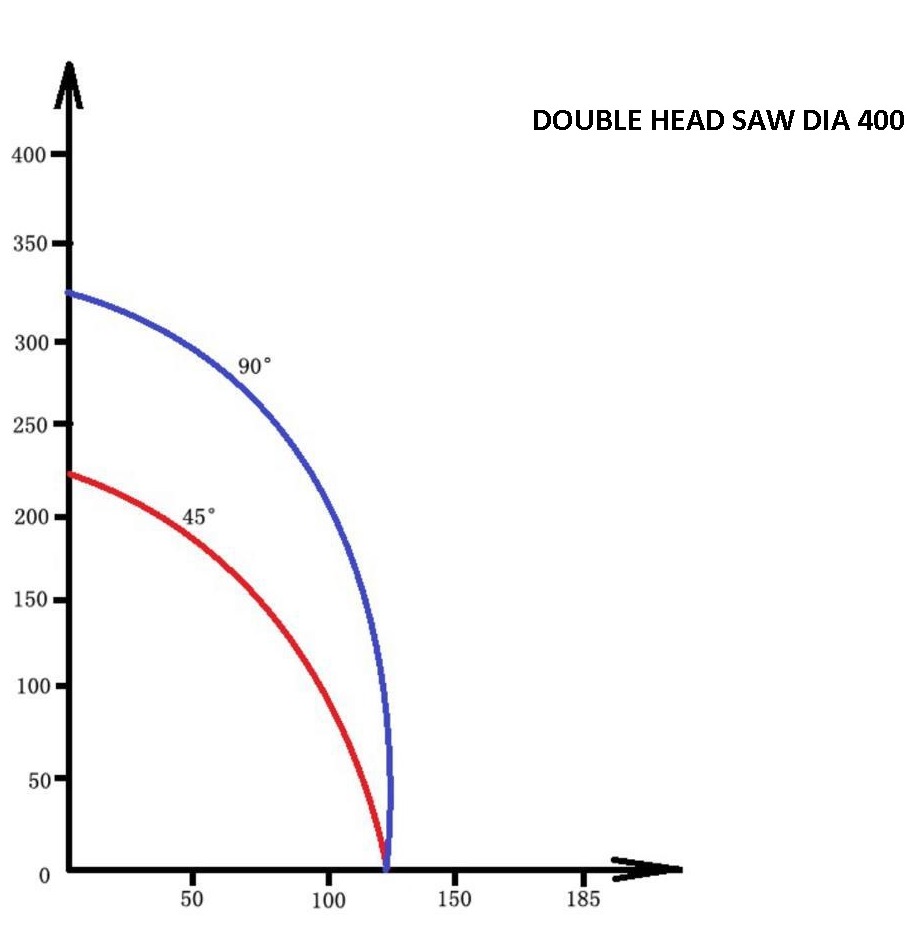

Cutting width x hight 100 x 100 mm

Cutting length 450 x 350 mm

Overall dimension 4000 x 1000 x 1450mm

Weight 600 kgs.
