SC-400-S- DOUBLE HEAD CUTTING MACHINE DIA 450 MM


Description:

DESCRIPTION -

Relevence with CE standards

Make double sided precision cutting of PVC and ALUMINIUM profiles

At 45 degree - 90 degree and intermediate degree.

The machine provides automatic adjustment in 45 degree - 90 degree and easy adjustment in other intermediate degrees.

PLC control control system

Edi 10000-step memory capacity including number and size of cuts

6mt program for automatic cutting of profiles longer than 3450 mm

Aluminium wedge slicing program

Multi-language support

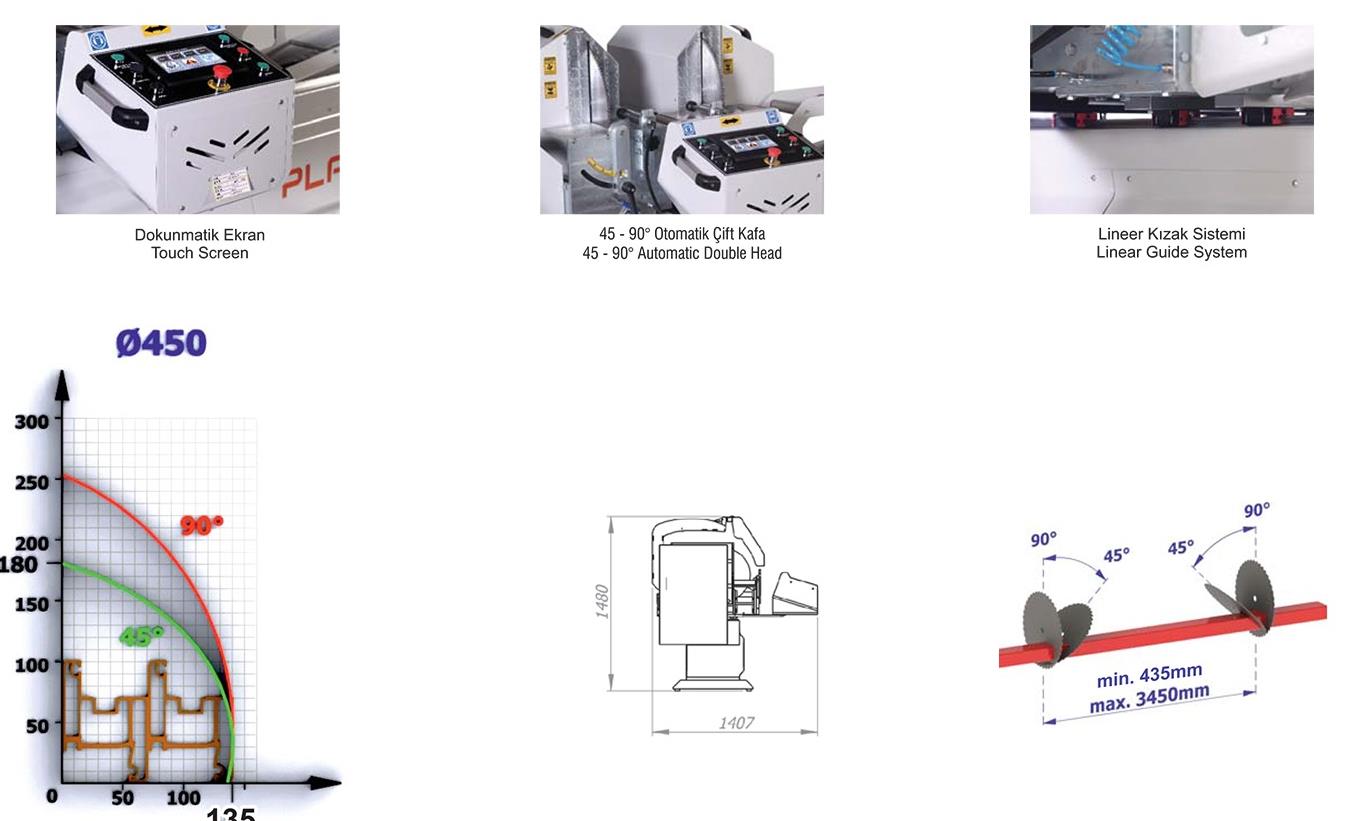

Saw blade diameter 450 mm

The saw output distence is 135 mm.provides 62mmx2 profile cutting

Safe cutting covers work automatically with pneumatic system

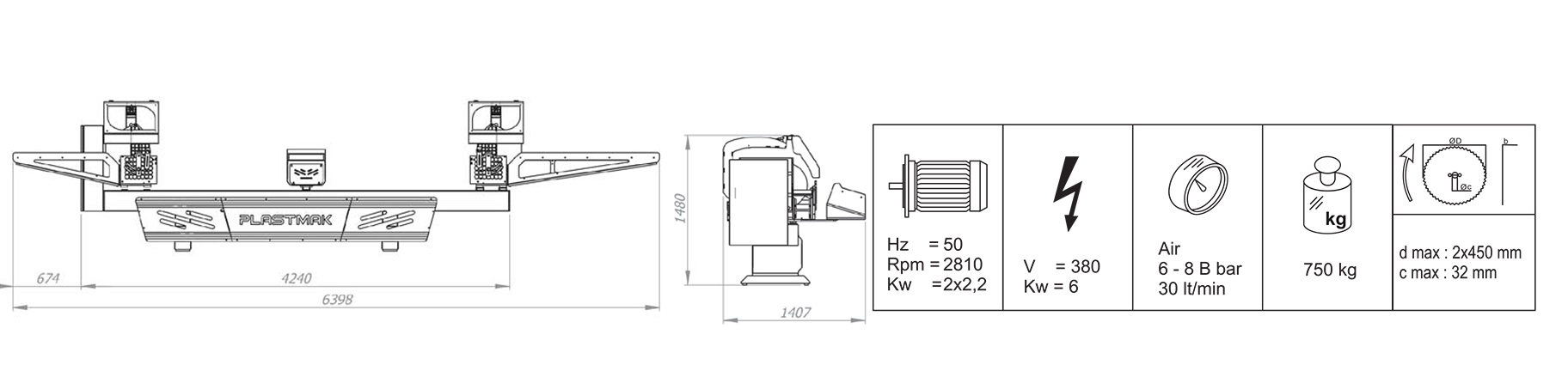

TECHNICAL SPECIFICATION

1.Power supply: 440 V, 3ph, 50-60 Hz 2.Spindle speed: 2,810 r.p.m

3.Air pressure: 6-8 bar 4.Air consumption: 30 l/min

5.Blade Dia - 450 mm 6.Blade inner Dia - 30mm

Options : Barcode printer

Motor rpm - 2810,2x2.2 kw

Cut list transfer via USB memory

Options :

CO- Cutting Optimization : A machine data transfer from the computer to the Ethernet modul

High precision servo motor drive system (+/-0 1 mm)

High precision servo motor drive system (+/-0 1 mm)

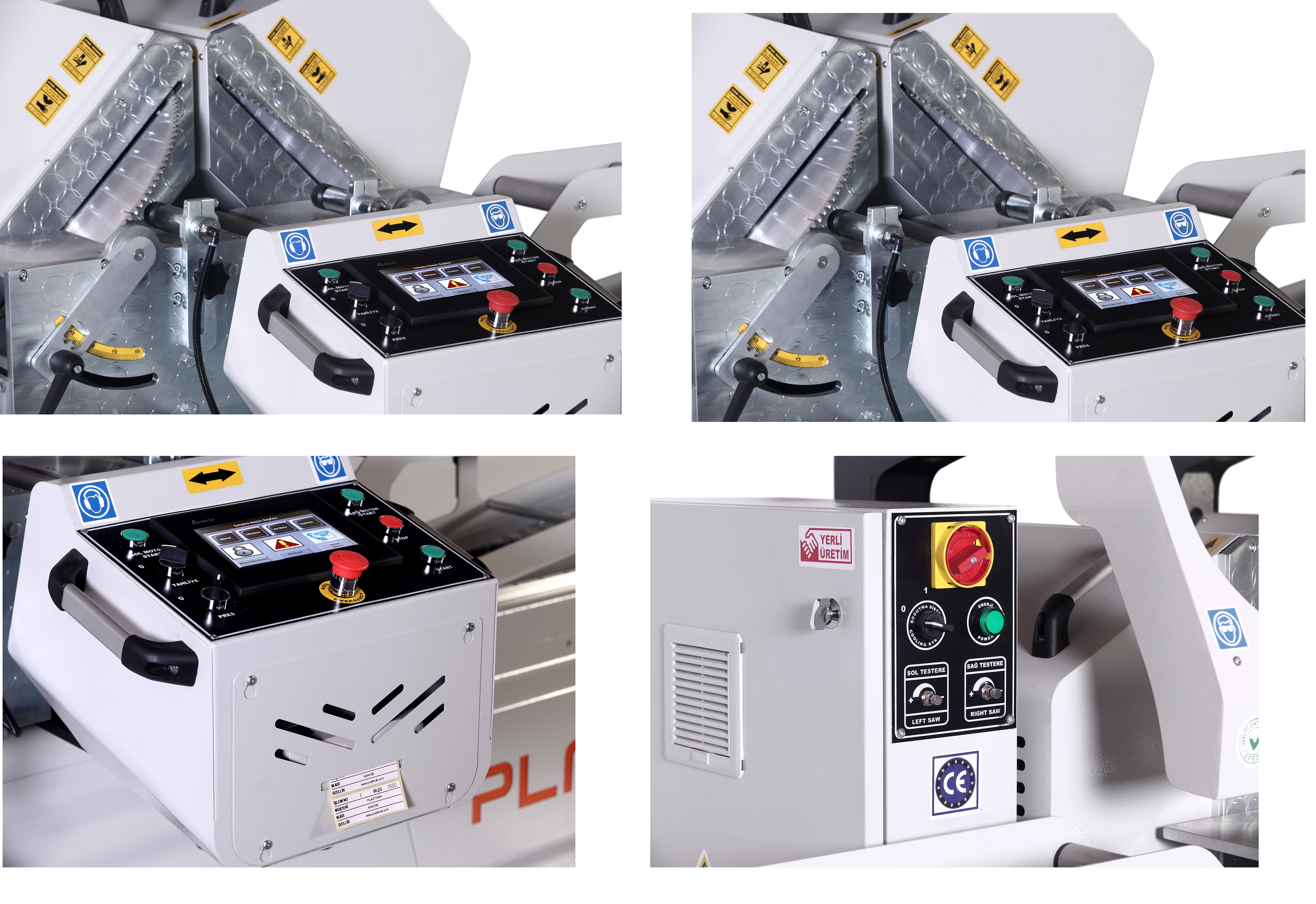

LCD control panel

Fixed Head (right) profile conveyors systems

Barcode label printer
