Description:
DESCRIPTION -
Complies with CE standards
PVC and ALUMINIUM profiles,straight or angled,double head blade 550 mm

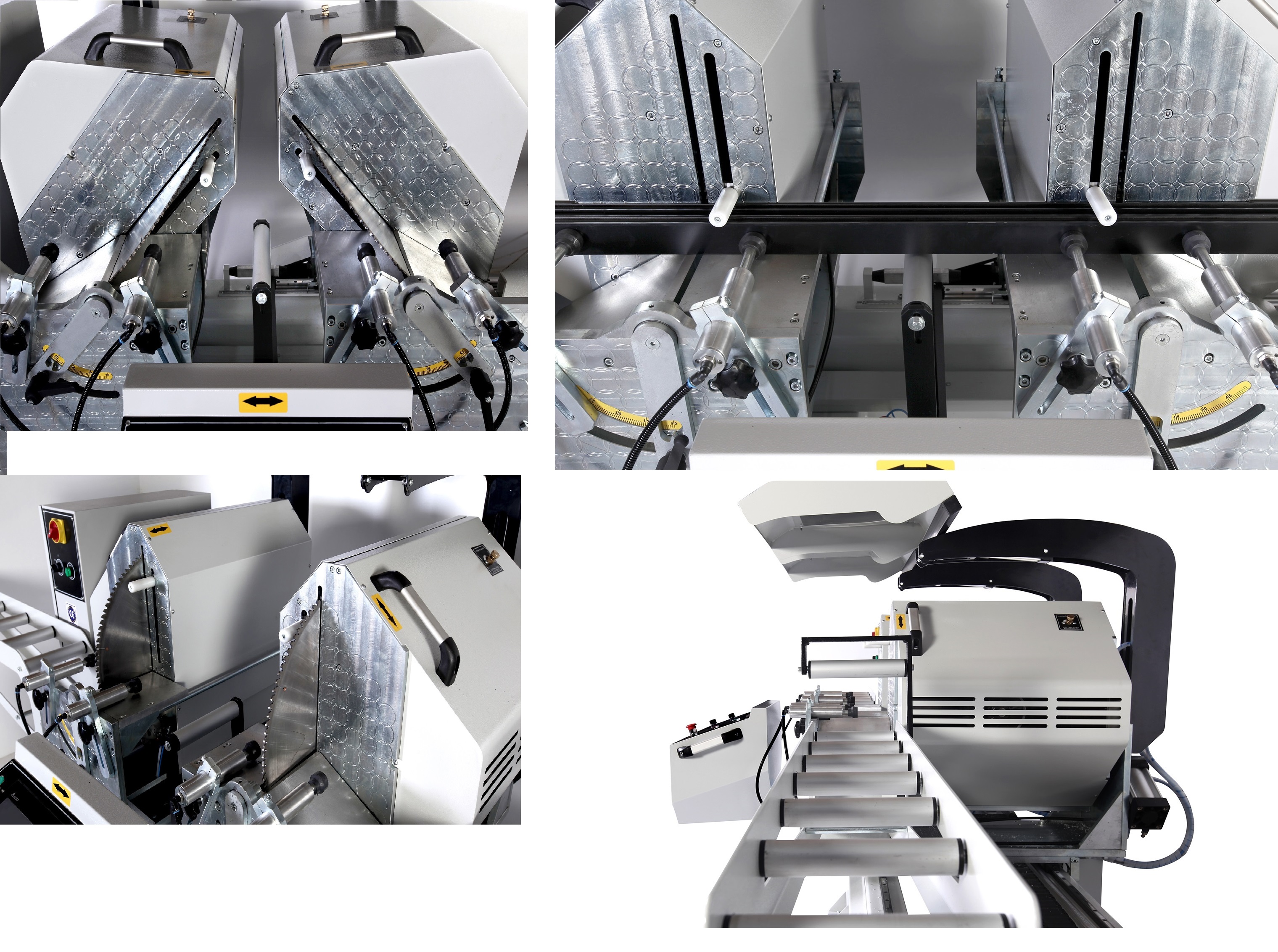

is a fully automatic controlled cutting machine designed to cut with a saw
Hydro-pneumatic hydrochek controlled saw motion
Cutting accuracy+/-0.1mm

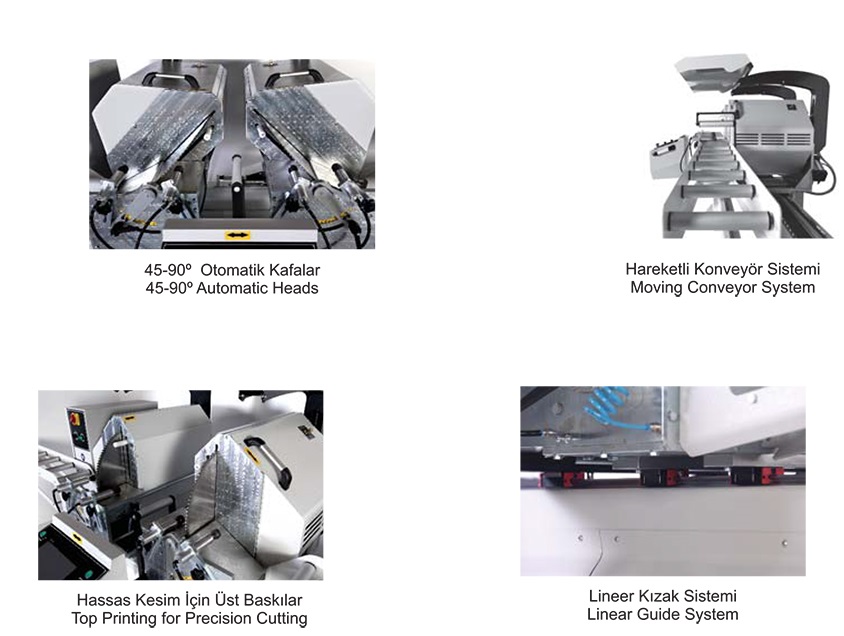

Automatically adjustable to 90 degree and 45 degree in two angles
Automatic sclicing at 90 degree angle windows based industrail PC
and10ve touch color panel display
Remote conectivity and technical support

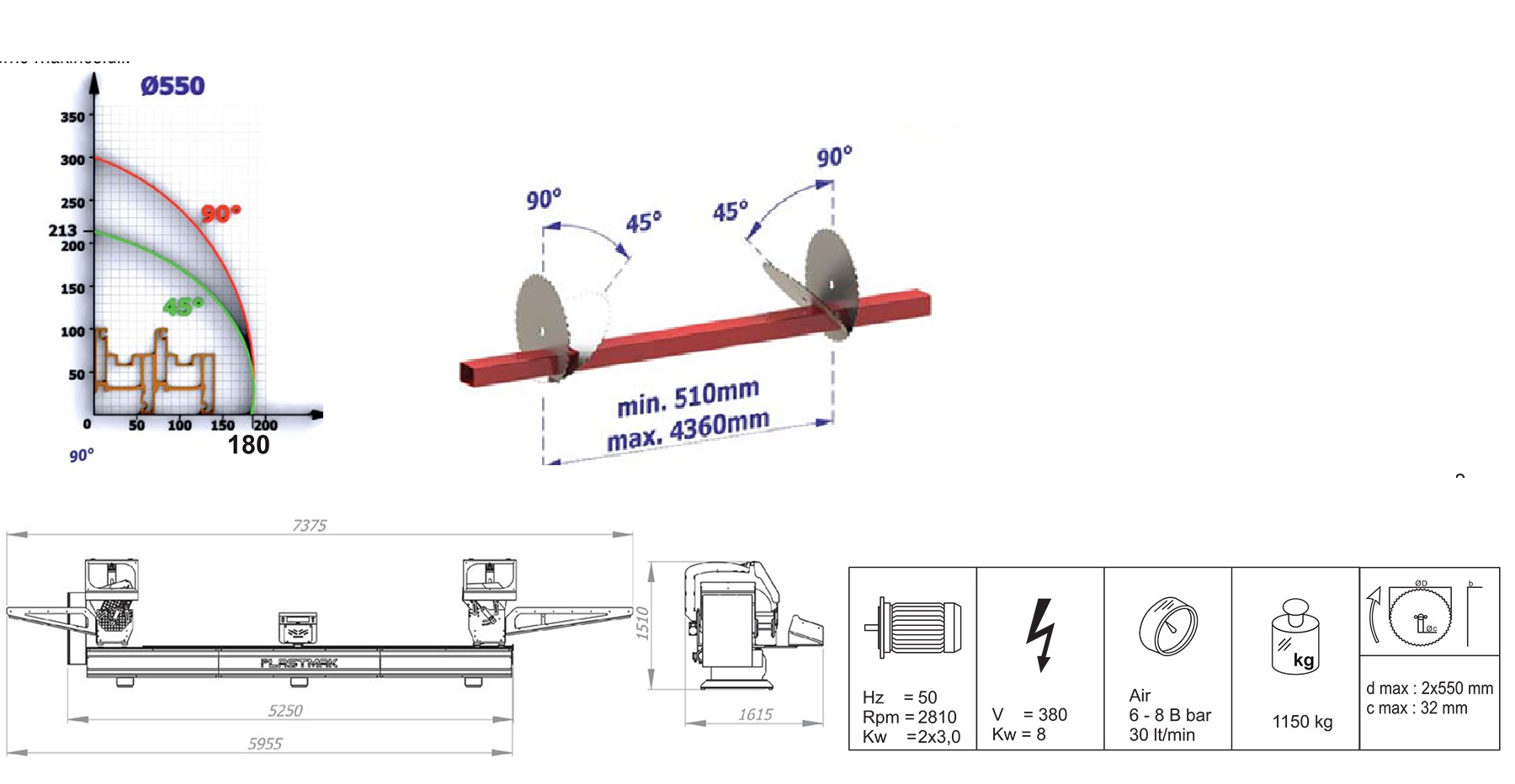

2x550mm saw blade
Servo motor motion system
18 CM saw output distance and 80mmx2 profile cutting
Hydrocheak saw speed adjustment
8meter cutting features
Multi-language support
Unlimited memory footprint
Spray saw cooling system
2xvertical vise
4x horizontal vise
OPTION -
Motors - 2x3 kw,2810 rpm
Barcode printer
Data transfer via USB memory
