BOND - 3 AXIS AP - CUTTING SAW - AUTOMATIC TOOL CHANGING


Description:

BOND VERTICAL MACHINGING CENTER WITH 8 TOOL CHANGER

The BOND machining center is a computer numerically controlled vertical router for Aluminum and PVC composite panels.
Spindle speed adjustment from 2800 to 18000 rpm is controlled by a frequency inverter.

Computer Numerically Controlled Interpolation of X and Y. Axis X, Y and Z movements utilize digital brushless motors.

The unit comes complete with a vacuum table to hold the panel and with an automatic tool changer.

Tool diameter correction is compensated by the software.

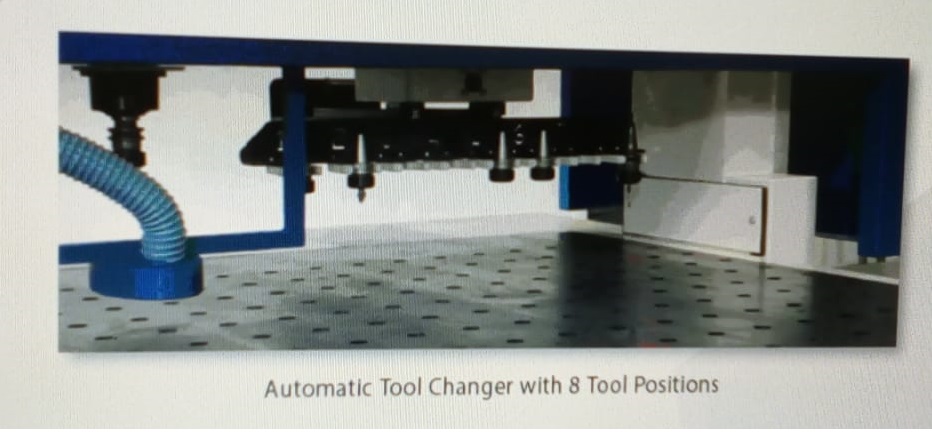

The automatic tool changer can hold up to 8 tools.



TECHINCAL SPECIFICATIONS:

Milling capacity: X=3100 Y=1550 Z=260 mm
4,5 kW HSD spindle with variable speed from 2800 to 18000 rpm
X, Y and Z axis controlled by CNC
Cooling system by electric fan
Numeric control
PC with monitor
Mouse and keyboard
Windows 10 Operative System
Serial and Ethernet interface for connection with barcode reader and LAN
Operator console separated from the machine
Automatic tool changer with 8 positions
Tool diameter compensation software
Working table with vacuum clamping system separated into 4 sectors
Dust extraction
Pressure: 7 bar, air consumption 40 NL/min
