Description:

DESCRIPTION -

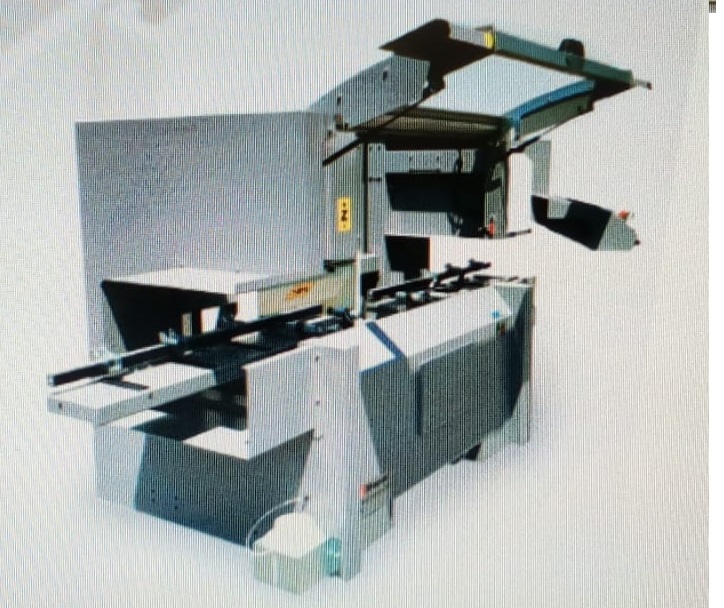

PTX500 EVO VERTICAL MACHINING CENTER

The PTX500 EVO is a numerically controlled compact vertical router for Aluminum, PVC and steel, capable

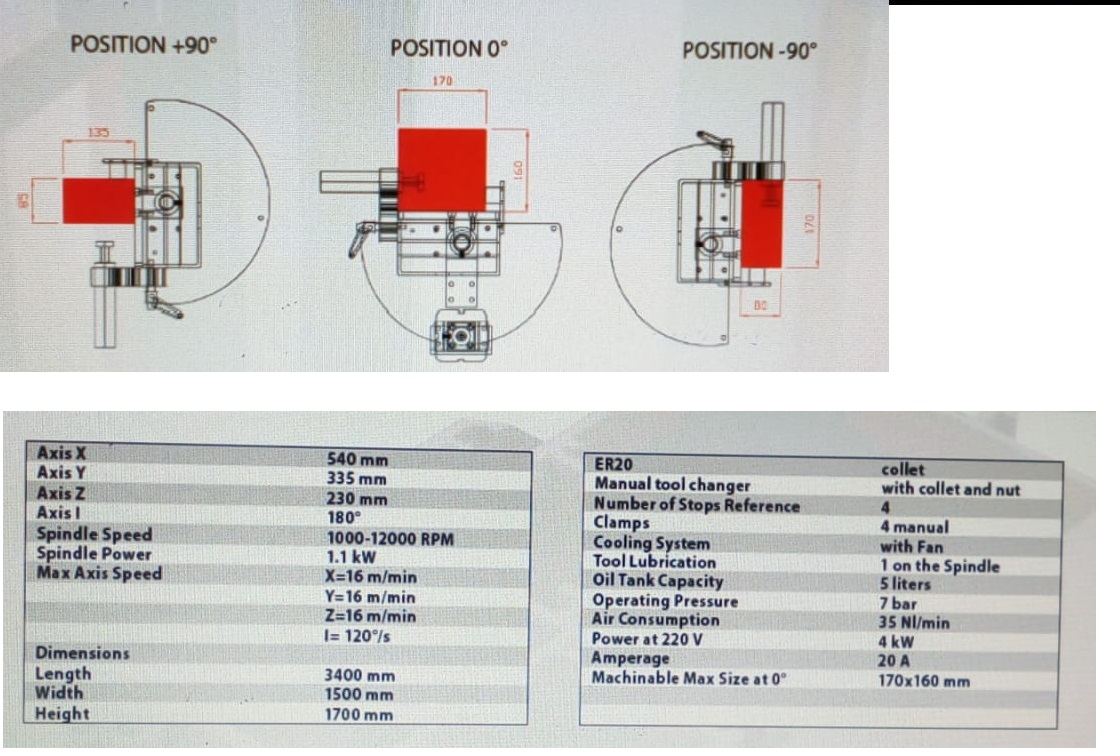

of working on 3 sides of the profile. Pneumatic tilting working table 90degree/0degree/-90dgree.
Spindle speed adjustment from 1000 to 12000 rpm is controlled by a frequency inverter.
Numerically Controlled interpolation of X and Y. Axis’ X, Y and Z movements utilize brushless motors on
ballscrews. The unit comes complete with 4 pneumatic clamps for material fixturing.
Software compensated tool diameter correction. Left and right profile zero stops.
Frontal and perimeter protection for safety included.
