Spindle speed: From 2800 to 18000 rpm
X and Y axes interpolation managed by CNC. Z and I axes managed by CNC.

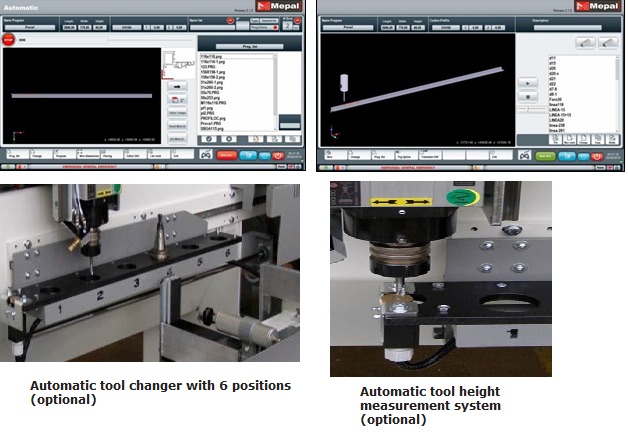

Touchscreen Windows 10 based CNC with graphical environment: easier programming experience.
X, Y, Z movements with Brushless motors and high precision reducers, both mounted on racks with zero backlash.
Working table height: 870 mm. Tool lubrication with discharge regulation. Maximum utilization safety thanks to safety barriers.
No.4 Pneumatic Clamps movable on the working table. High and low pressure with safety valves.
Automatic correction of the tool diameter trough the machine software. HSD Threephase Spindle: 4.5 kW – 18.000 rpm 400V 500 Hz.
Pressure: 7 bar. Adjustable feet
STANDARD EQUIPMENT -
-N.1 ISO 30 tool holder
-Spray mist lubrication
-Air filter -Air gun
-Service keys
STANDARD PARTS (OPTIONAL)
Cabin 3 sides with safety guards on the back - 3.500,00 €
Full cabin 5 sides - 4.650,00 €
Noise reduction option for “Full cabin 5 sides” - 500,00 €
Automatic clamps positioning by spindle (ACP) - 2.750,00 €
8 kW electrospindle - 4.000,00 €
Micro drop lubrication with pure oil - 550,00 €
Tool kit (2x6mm, 2 x 8mm, 2x10mm, 2x12mm, 8 x tool holders, 1xd.120 mm blade with tool holder) - 1.500,00 €
Office software license - 1.300,00 €
