Description:
DESCRIPTION -

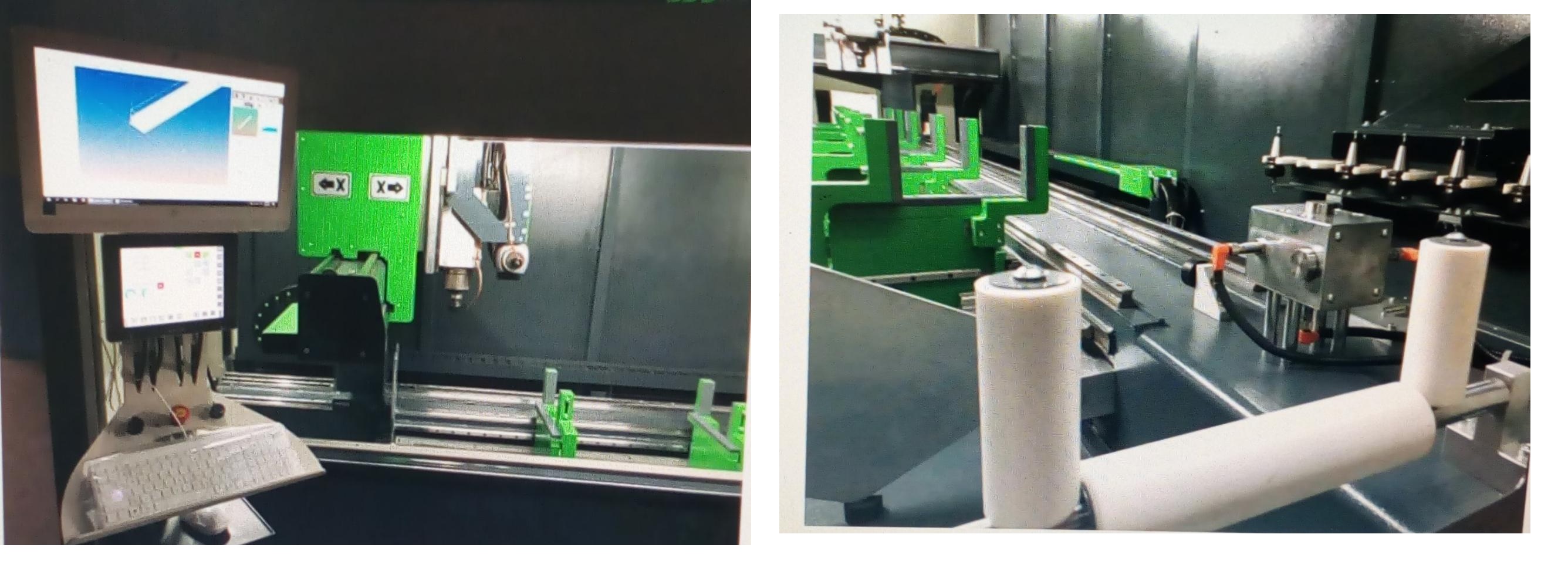

Servo motor 3 Axis CNC controlled machining centre with a protection cover.
Thanks to the protection cover, the machine has both sound isolation and the dust isolation.
C column type profile carriage ensures 0,1mm./1m. Accuracy. 7.5 kW high speed spindle works up to 18.000 rpm. with ISO 30 tool holders. Optional 3.0 kW 18.000 rpm lateral spindle for sides working with ER-20 tool holders.
The alloys that can be processed on the machine: Aluminium up to 20 mm wall thickness – steel up to 8 mm wall thickness – light alloys such as PVC and etc.

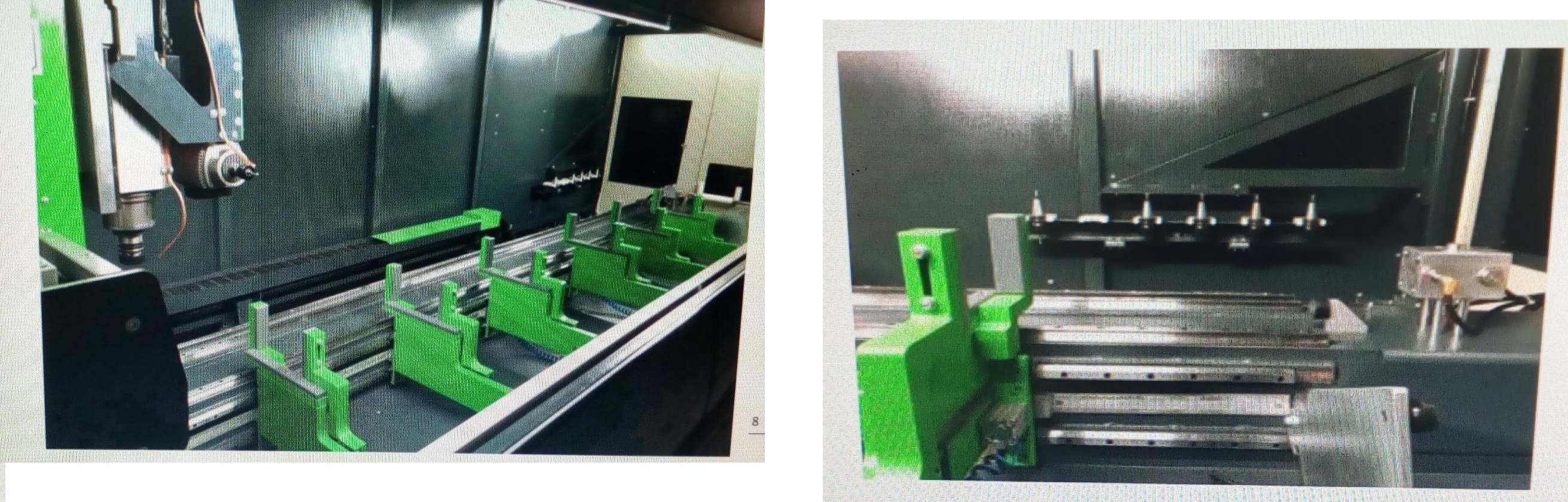

The XC 2000 has profile clamps that are manually positioned according to the positions assigned by the CAD-CAM software.
AUTOMATIC POSITIONING is optional. All clamps are mounted on the machine with linear bearings and move on linear guides.
230 mm X 230 mm Profile processing from the top and from the front. 150 mm. X 230 mm.
Profile processing from 3 sides of the profile. Thanks to 6 positions tool magazine, it is possible to carry any tool b/w 1 mm – 20 mm tool diameter and 150 mm of disc cutter.
The disc cutter is vital for alu windows&doors&sliding series processing.
Waste pieces are isolated by the machine cover and extracted by the operator.
CAD-CAM software is specially designed for the easiest way of processing profiles.
The system starts working with the import of DXF drawings of the profile that will be processed.
It is extremely easy to program the profile, make demo before it works, help to work out time study and keep the work done in the HDD of the machine easily.
Axis information: X axis net processing length: 4.200 mm. / with the second stopper 8.000 mm. Y axis net processing width: 230 mm.. Z axis net processing depth: 230 mm
. The body: Vibration free steel chasis, processed with the highest accuracy before mounting the mecanichal accessories.
Spindle Heads: 7.5 kw 1.000 -24.000 rpm spindle with one inverter adjusted for any rotation speed. Lateral Spindle: 3.0 kW 18.000 rpm second spindle for working from the sides of the profiles.

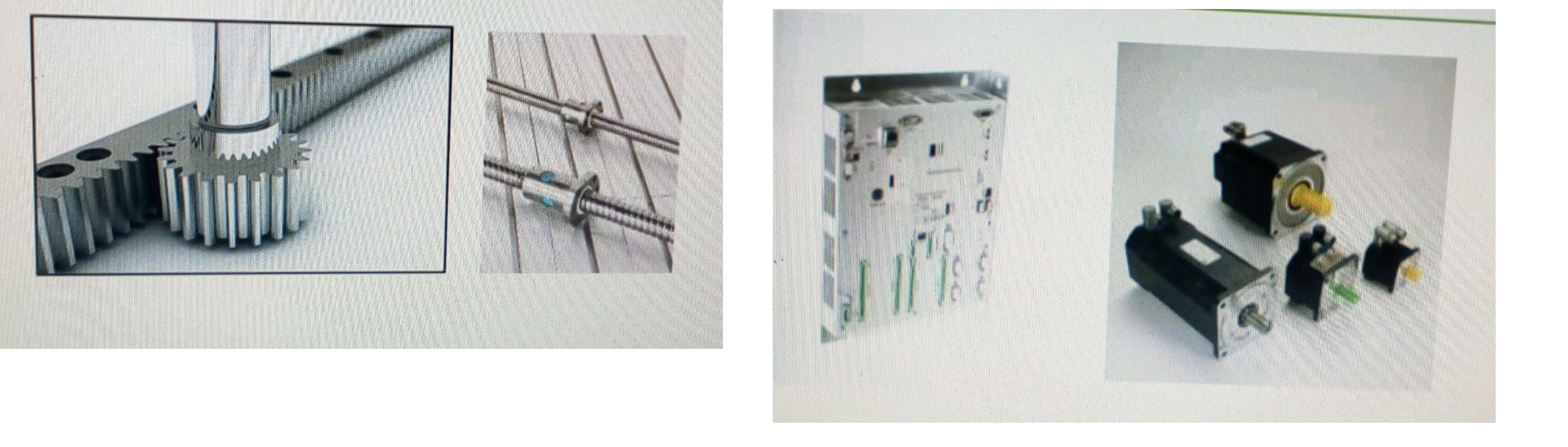

Axis technical information: X axis is working on crackmil and pignon with brushless servo motors and guided by linear guides with 65 mt./min speed.
Y axis is working on crackmil and pignon with brushless servo motors and guided by linear guides with 65 mt./min speed.
Z axis works with a screw mill and brushless brake type servo motor with a speed of 25 mt./min.
Technical Parameters: Total installed power: 12 kW / 30A / 400V / 50 -60 Hz. Air pressure and air consumption: 6-8 Bar. - 70 L/min. Packing dimensions: 5.800 X 2.200 X 2.750 mm. Weight: 3.100 kgs.
