Description:

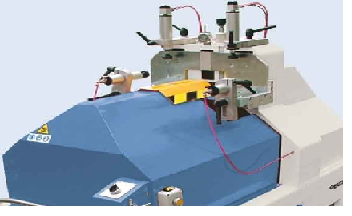

Thise cutting machines are realized for the machining of PVC profiles.
TECHNICAL DATA:
Overall dimensions (LxWxH): 800x1500x1350 mm
Weigth: 200 Kg. Three-phase motors 230-400V 50 Hz 1.1Kw(1.5 hp)
Blade spin. 2800 rpm.
Working pressure 7 bar
STANDARD EQUIPMENT:
N°2 Vertical pneumatic clamps Working table adjustable with handwheel
Adjustment of the clumps speed Full protection of the blades
Adjustment of the blades feeding speed
N°2 Three-phase motors
Air filter with adjustment of the pressure Service spanners
OPTIONAL
Side stop complete with measuring gauge Single phase motors Oleo-pneumatic cylinders of the blades and spray mist lubrification
Orizzontal pneumatic clumps (Only TR-V)
