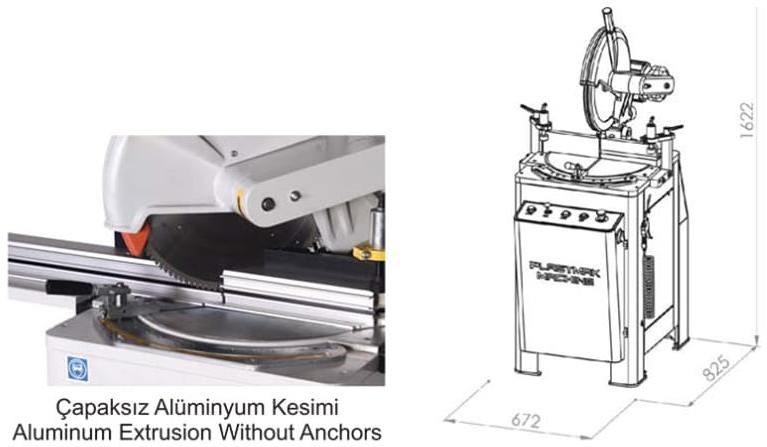

SC -431 - SINGLE HEAD MANUAL CUTTING SAW DIA 400 MM

  • image
  • image
  • image
  • image

Description:

DESCRIPTION :

Relevance with CE standards

The machine can cut at + 45degree-45degree and intermediate degrees.

Quick adjustment bumpers for 90degree,75degree,60degree,45degrees Table fixing lever for intermediate degrees

Profile jamming is practically done by a pneumatic system,

Diamond shape saw diameter is 0400mm.

Measuring and transport conveyors are available as a standard (2m right - left) Option

Cooling system for aluminum profile cutting

Roller conveyor system (3mt)



TECHINICAL CHARACTERISTICS OF THE MACHINE AND TECHINICAL INFORMATION -

1. cutting of PVC AND ALUMINIUM profiles in one way with a single buttom.

2. press separate operation features.

3. saw diameter 400 mm.

4. PVC and ALUMINIUM cutting according to easy cutting facility.

5. optional cooling system installed (option )

6.optional roller conveyor is installed (option )7 motor 1.5 kw
