SC-402-SINGLE HEAD CUTTING UPSTROKE MACHINE DIA 550



Description:

DESCRIPTION -

Relevence with CE standards.

Used for cutting aluminium and pvc profiles.

Hydro-pneumatic cutting process.

Adjustable cutting speed according to the profile.

Right and left-60degree,-45degree,-30degree,-22,5degree,-15degree,0degree,

+15degree,+22,5degree,+30degree,+45degree,+60degree.

Cutting at fixed angles.

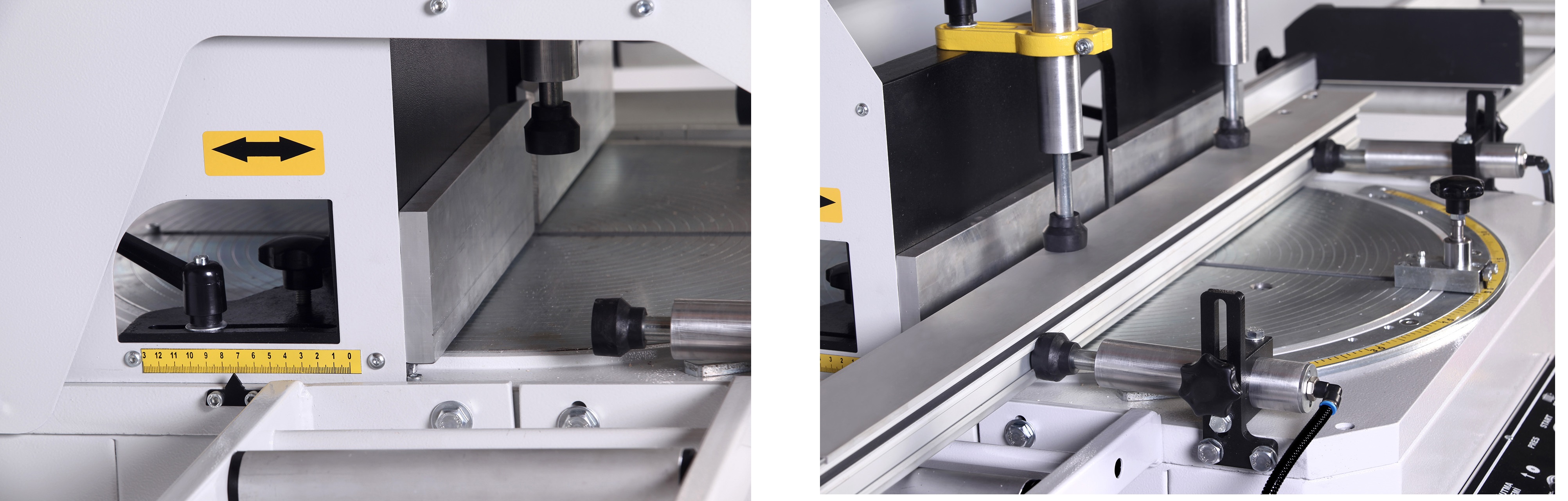

Pneumatic,vertical and horizontal press.

Blade550mm diamond tipped aluminium saw.

Roller conveyor available (right-left3mt)

Oil spray system.

3kw motor and hydrocheaks providing precision cutting.



Technical specifications -

Power supply: 440 V, 3ph, 50-60 Hz.

Power output:1.3kw

Spindle speed: 2,810 r.p.m.

Air pressure: 6-8 bar.

Air consumption: 41 l/min.

Blade outer radius : 550 mm.Blade inner radius : 30 mm.Blade thickness:4 mm.

Blade running speed : 320 Optional Cooling systems for aluminum profile cutting.
