FLY 600 A STANDARD FRONTAL SAW 4 METERS


Description:

TECHNICAL DATA -

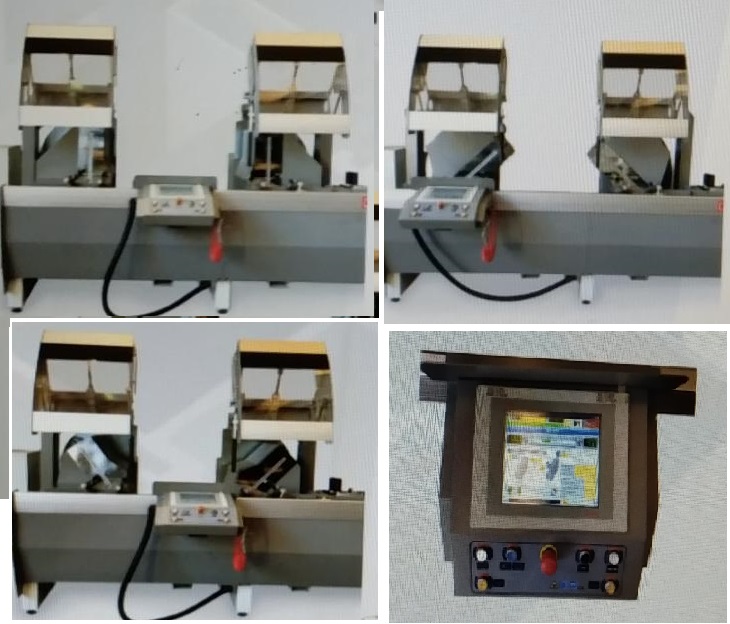

Double head cutting off machine with a fixed unit on the left and automatic right head movable by numeric control.

Pneumatic tilting of both heads from 90 - 45 AND 22.5 outwards ONLY. 4 kW motors.

Equipped with horizontal and vertical clamps with low pressure valve, cutting area protection, 2,5 m movable head conveyor, no.2 600 mm blades, spray mist lubrication.

EQUIPPED WITH ELECTRONIC WINDOWS XP TOUCHSCREEN POSITIONER

ABLE TO -

Manage single cuts

Memorize 100 profile codes and their values

Memorize cutting list already calculated via keyboard

Manage frame typologies

Metric ruler with reading index

Memorize cutting list already calculated by USB.



OPTIONAL EQUIPMENT:

2.5 m fixed head conveyor

Intermediate profile support

Intermediate pneumatic profile support

Scrap pushing brush

Microdrop lubrication with pure oil

Cuttin oil, 20 l

Electronic profile height measurement system.
