FLY 600 A DRV STANDARD FRONTAL SAW 4 METERS


Description:

TECHNICAL DATA -

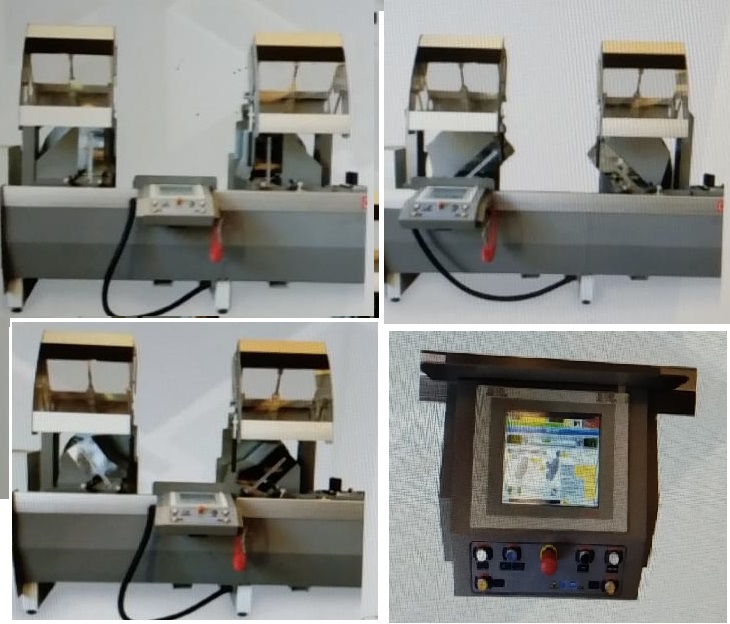

Double head cutting off machine with a fixed unit on the left and automatic right head movable by numeric control.

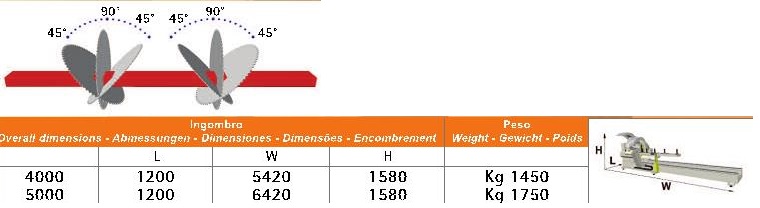

Pneumatic tilting of both heads from 90 to 45 inward and 22.5 outwards. 4 kW motors.

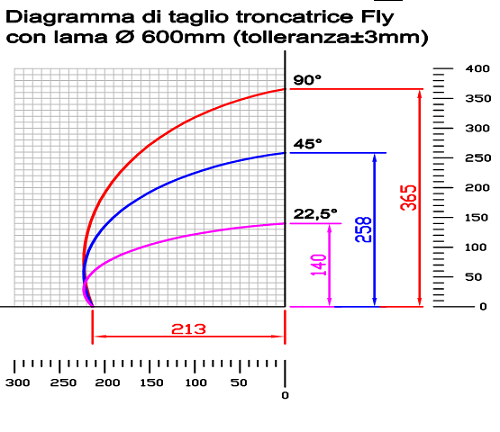

Equipped with horizontal and vertical clamps with low pressure valve, cutting area protection, 2,5 m movable head conveyor, no.2 600 mm blades, spray mist lubrication.



EQUIPPED WITH ELECTRONIC WINDOWS XP TOUCHSCREEN POSITIONER ABLE TO -

Manage single cuts Memorize 100 profile codes and their values Memorize cutting list already calculated via keyboard Manage frame typologies Metric ruler with reading indexMemorize cutting list already calculated by USB.

OPTIONAL EQUIPMENT -

2.5 m fixed head conveyor

Intermediate profile support

Intermediate pneumatic profile support

Scrap pushing brush

Microdrop lubrication with pure oil

Cuttin oil, 20 l

Electronic profile height measurement system

Microdrop lubrication with pure oil.
