FLY 500 A DRV STANDARD FRONTA SW 4 METER


Description:

DESCRIPTION

FLY 500 DRV SERVO DRIVEN DOUBLE MITER SAW
The FLY 500 DRV Double Miter Saw is a servo length positioned, double miter back cut saw with a fixed left head and numerically controlled positioning right head.

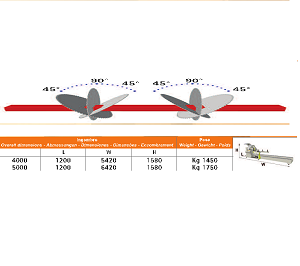

Cut angles can be set by pneumatic actuators from 45°/90°/135° and intermediate angles utilize a manual set stop.

The machine is equipped with a V8 touchscreen industrial CNC for easy operator interface.

motor 2.2 kw 2800 rpm

Dimension L5500XW1400XH1600



COMPONENT SUPPLIED:
• N.2 Horizontal and N.1 Vertical clamps per head
• Cutting area completely protected
• Pneumatic mist spray
• Movable roller side support and air gun
• Cutting list capabilities

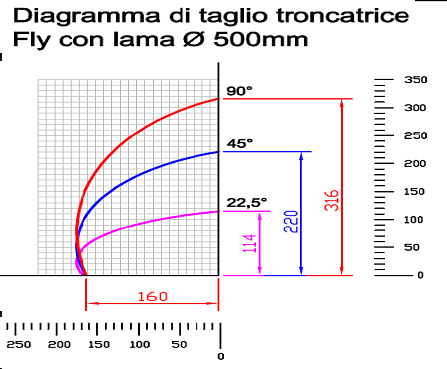

• TCT Saw blade Ø500 mm
OPTIONS:
• Windows 10 TouchScreen Control
• Dust extractor
• Intermediate pneumatic support
• Microdrop lubrication with pure oil
• Electronic caliper for profile height measuring
• Label printer
• 5 meters cutting length
• Extra clamp
