Spindle speed: From 2800 to 15000 rpm
X and Y axis interpolation managed by CNC. Z and I axis managed by CNC.
Touchscreen Windows 10 based CNC with graphical environment: easier programming experience.
X, Y, Z movements with Digital Brushless motors and high precision reducers, both mounted on racks with zero backlash.
I movement with pneumatic cylinders. Working table height: 870 mm. ? Tool lubrication with discharge regulation.
Maximum utilization safety thanks to safety barriers. ? No.6 Pneumatic Clamps movable on the working table.
High and low pressure with safety valves. ? Automatic correction of the tool diameter trough the machine software.
HSD Threephase Spindle: 4.5 KW 6 Hp – 15.000 rpm 400V 400 Hz.

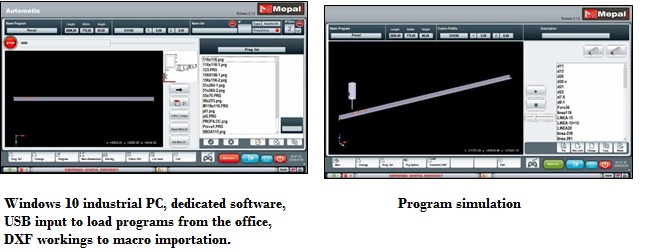

Pressure: 7 bar. Adjustable feet. Industrial PC with Windows 10 Embedded, dedicated software, USB input to load programs from the office, DXF workings to macro importation.
STANDARD EQUIPMENT
N.1 ISO 30 tool holder -
Spray mist lubrication -Air filter -Air gun -
Service keys -Automatic tool changer with 11 tools positions -

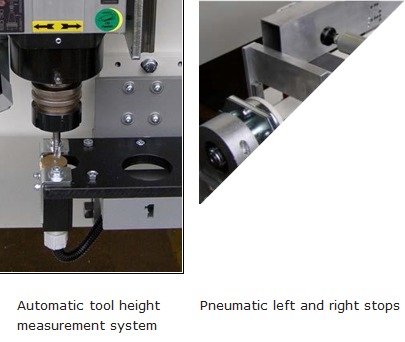

Pneumatic left and right stops
STANDARD PARTS (OPTIONAL)
Cabin 3 sides with safety guards on the back - 3.500,00 €
Full cabin enclosing the machine - 4.600,00 €
Noise reduction option for “Full cabin 5 sides” - 500,00 €
Automatic clamps positioning by spindle (ACP) - 4.400,00 €
8 kW electrospindle - 4.000,00 €
Tool kit (2x6mm, 2 x 8mm, 2x10mm, 2x12mm, 8 x tool holders, 1xd.140 mm blade with tool
holder) -1.500,00 €
Microdrop lubrication with pure oil -550,00 €
Office software license- 1.250,00 €
