Spindle speed: From 2800 to 15000 rpm ? X and Y axis interpolation managed by CNC. ? Z axis managed by CNC. .
Touchscreen Windows 10 based CNC with graphical environment: easier programming experience. ?
X, Y, Z movements with Digital Brushless motors and high precision reducers, both mounted on racks with zero backlash.
? I movement with pneumatic cylinders. ? Working table height: 870 mm. ? Tool lubrication with discharge regulation.
? Maximum utilization safety thanks to safety barriers. ? No.6 Pneumatic Clamps movable on the working table.
? High and low pressure with safety valves. ? Automatic correction of the tool diameter trough the machine software.
? HSD Threephase Spindle: 4.5 KW 6 Hp – 15.000 rpm 400V 400 Hz. Pressure: 7 bar. Adjustable feet. Industrial PC with Windows 10 Embedded, dedicated software, USB input to load programs from the office, DXF workings to macro importation.
STANDARD EQUIPMENT-
-N.1 ISO 30 tool holder
-Spray mist lubrication
-Air filter -Air gun -
Service keys -

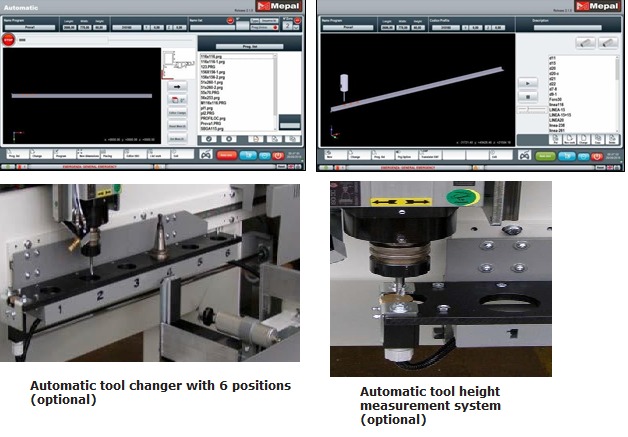

Automatic tool changer with 11 tools positions
-Pneumatic left and right stops
STANDARD PARTS (OPTIONAL) -
- Cabin 3 sides with safety guards on the back - 3.500,00 €
- Full cabin enclosing the machine - 4.600,00 €
- Noise reduction option for “Full cabin 5 sides - 500,00 €
” - Automatic clamps positioning by spindle (ACP) - 4.400,00 €
- 8 kW electrospindle - 4.000,00 €
- Tool kit (2x6mm, 2 x 8mm, 2x10mm, 2x12mm, 8 x tool holders, 1xd.140 mm blade with tool holder) - 1.500,00 €
- Microdrop lubrication with pure oil - 550,00 €
- Office software license - 1.250,00 €
