Description:

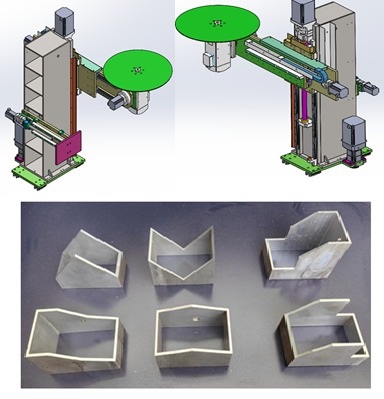

The machine is equipped with a CNC servo system, controlled by three-axis servo + servo swing angle + servo baffle, totally 5 sets of servo. The profile processing program is pre-designed and you only need to select the program on the touch screen to automatically process it. No need to adjust the machine for trial production. Profiles with different end face sizes can be quickly switched to improve production efficiency.
Use high-precision motors and high-precision guide rails to ensure cutting accuracy.
Saw blade controlled by servo motor can swing 0-180 degree, which can efficiently cut vertical end faces and arbitrary angular end faces, improving work efficiency.

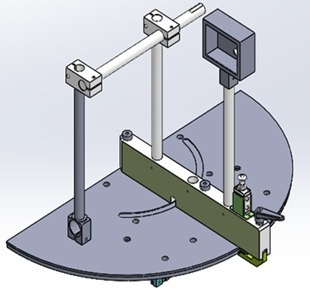

The swing angle of the back plate is equipped with a digital display device, which can realize composite arbitrary angle end face processing.
The positioning baffle adopts servo control position, can be positioned arbitrarily through CNC programming, which is convenient and instantaneous
Through layered cutting, the maximum cutting height can reach 460mm.
The system fully supports MES networking software, such as Xinger or Changfeng, and supports robot ports, so no changes are needed for subsequent unmanned automatic line production.
