Description:

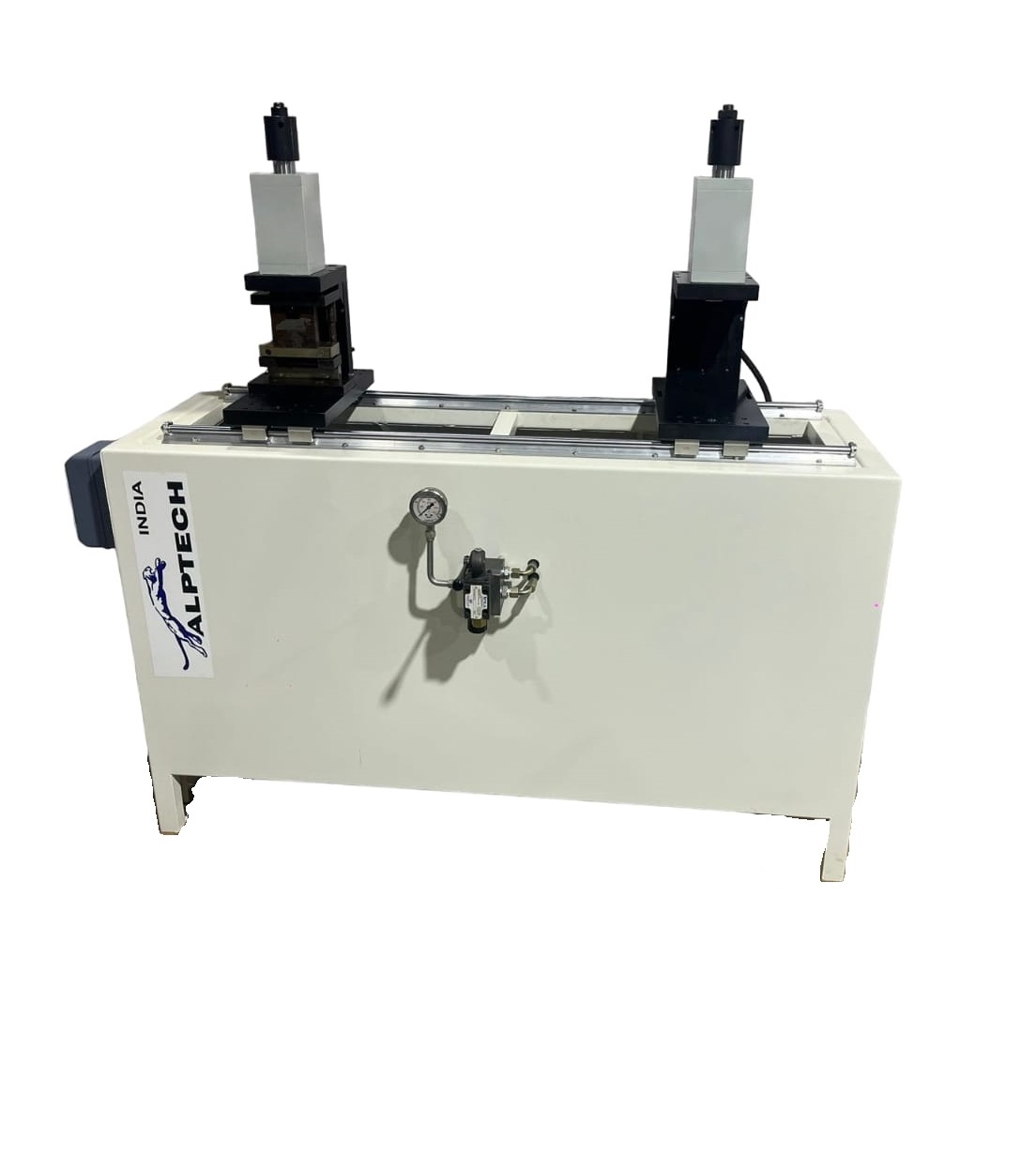

- Solpunch 2 head hydraulic punching machine.
- Solar profile punching machine is made keeping in mind variety of profiles for framing of solar panels.
- Machine is flexible with option of multiple heads addition as per customer requirements.
- Machine body is fabricated and powder coated.

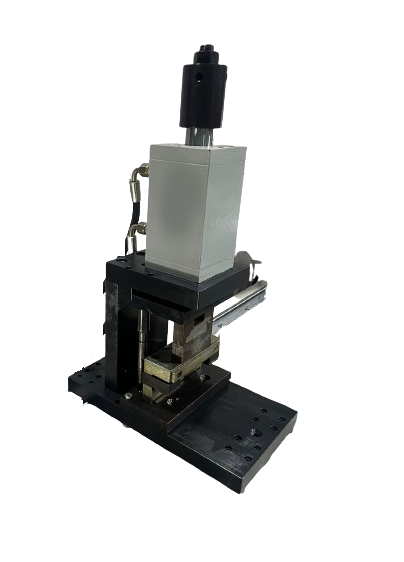

- Cylinder head assembly is mounted on linear guides and have cassette system tooling for maximum flexibility to cater entire range of solar profiles .
- 3 HP electric motor drives a hydraulic power pack with a pump, pressure relief valve and directional control valve.
Technical specifications:
- Motor - 3hp, 1500rpm, 415V AC.
- Oil Tank capacity - 50 ltrs.
- Pump - Gear
- Max. Opt pressure - 160kg/cm2
- Directional control - Manual or SOV
- Hydraulic Head stroke - 50mm
- Piston rod dia. - 40mm

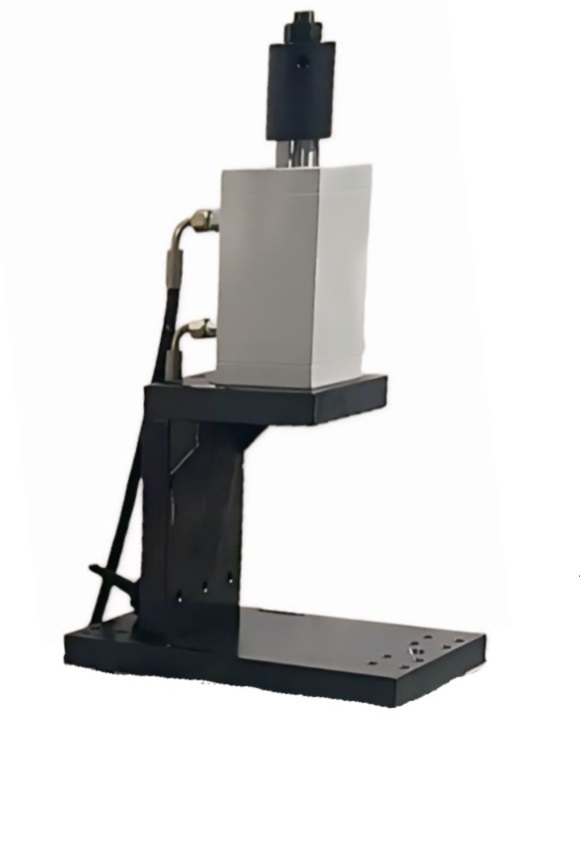

- Hydraulic Head size - 100*100*200 long overall
- Head Tonnage capacity - 5 Ton each
- Stroke adjustment - Manual
