Description:

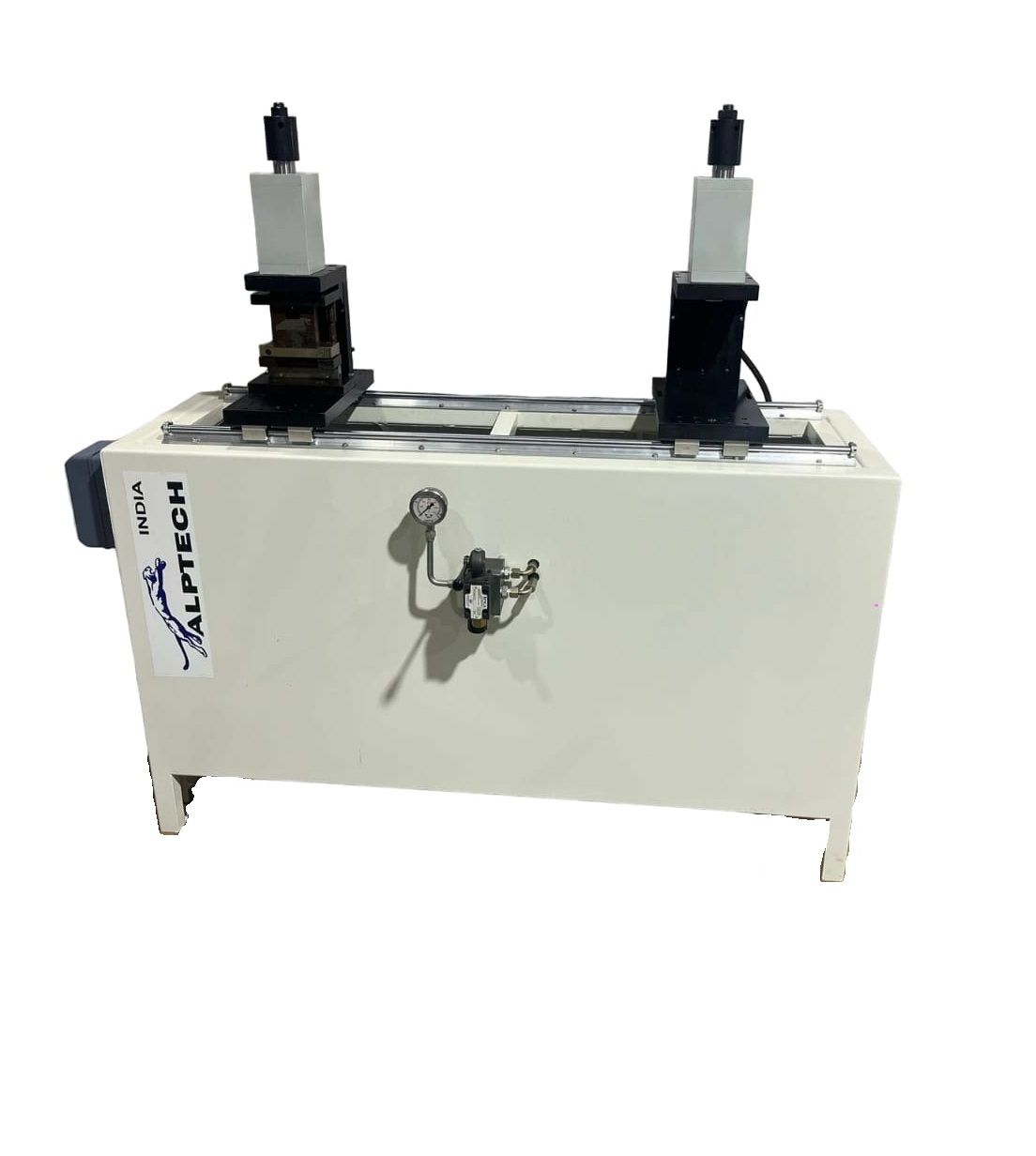

Solpunch 2 head hydraulic punching machine for crimping operation

Solar profile punching machine is made keeping in mind variety of profiles for framing of solar panels.
Machine is flexible with option of multiple heads addition as per customer requirements.
Machine body is fabricated and powder coated.

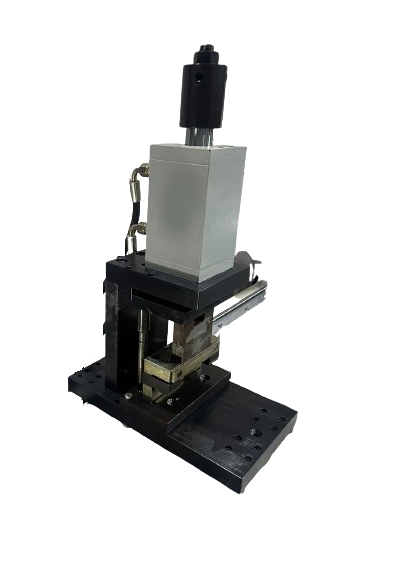

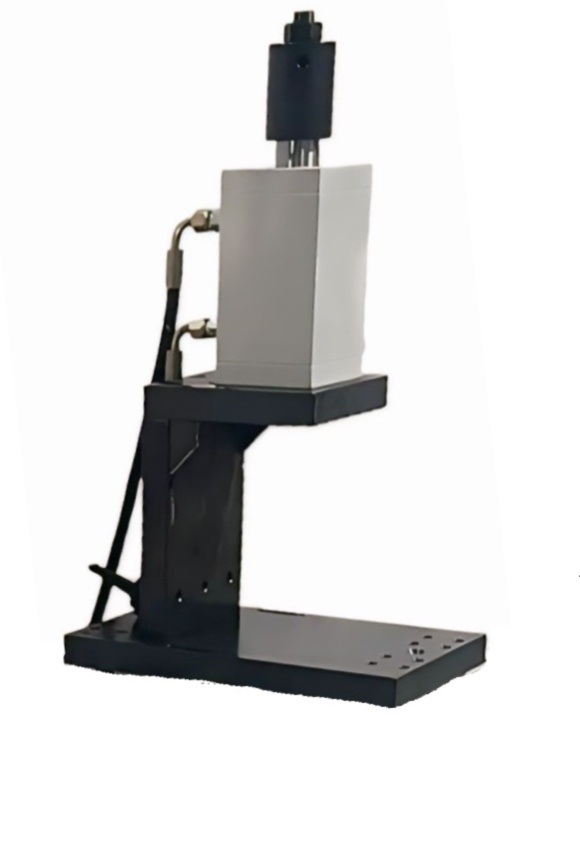

Cylinder head assembly is mounted on  linear guides and have cassette system tooling for maximum flexibility to cater entire range of solar profiles .
3 HP electric motor drives a hydraulic power pack with a pump, pressure relief valve and directional control valve.

Technical specifications:

Motor - 3hp, 1500rpm, 415V AC.
Oil Tank capacity - 50 ltrs.
Pump - Gear
Max. Opt pressure - 160kg/cm2
Directional control - Manual or SOV
Hydraulic Head stroke - 50mm
Piston rod dia. - 40mm
Hydraulic Head size - 100*100*200 long overall
Head Tonnage capacity - 5 Ton each
Stroke adjustment - Manual
