Description:
TECHNICAL DATA -
Power : 3 Phase 380 v 50 Hz
Totally power : 5.5kw
Y axis hydrulic thrust:25T
Repeat positioning accuracy of Y axis hydraulic cylinder:0.02mm
Max X axis tarque : 4000n.m
Three shaft speed :1-15r/min
Axis spacing:270-600mm
Min bending radius:R=100mm
Diameter of spindle:60mm
Max processing profile size (w*h):150*200mm
Machine size:1300*1200*1400mm
operate Box size: 500*300*1200mm
Weight:1300 kg
all three rolllers roation is with sepret servo rorartion

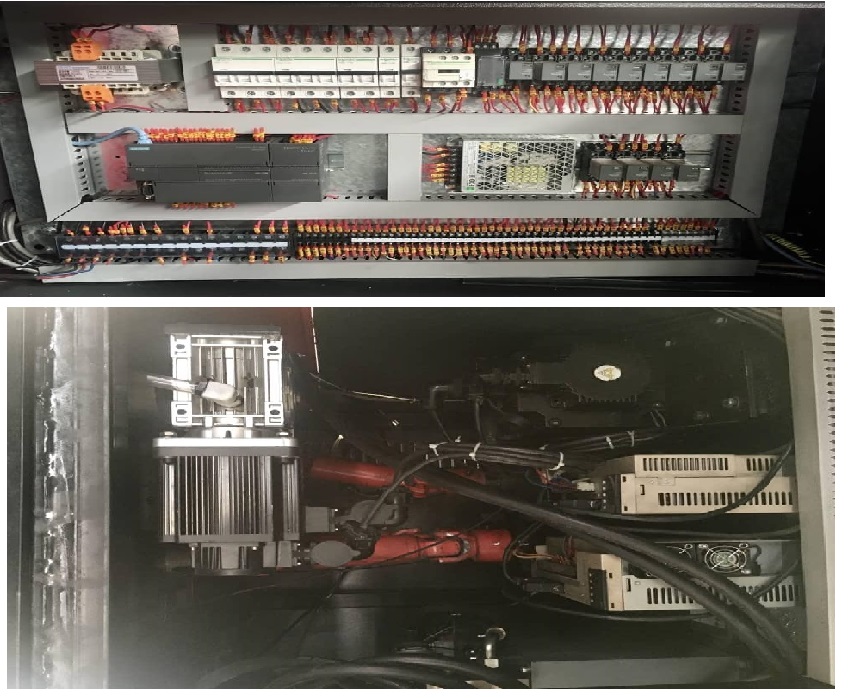

Machine spare parts details
CNC Control system is panasonic

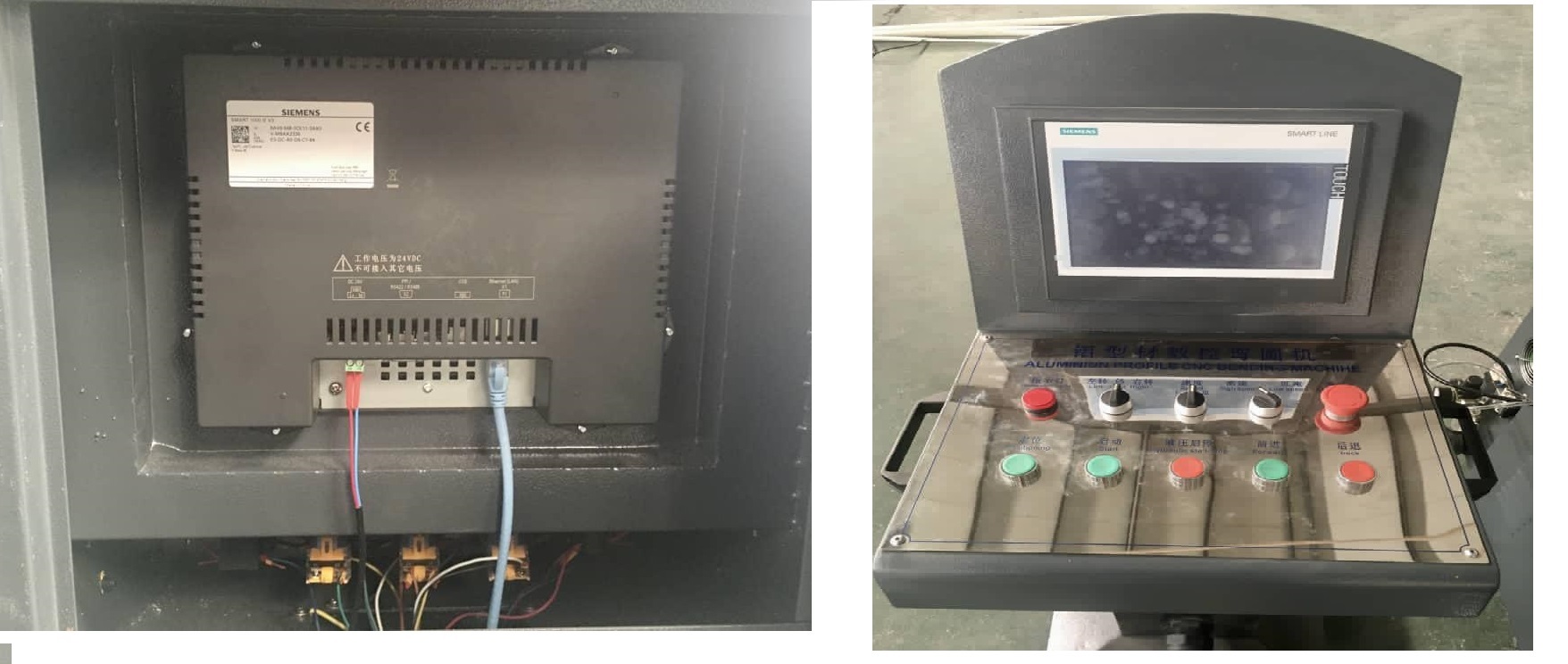

Scheneider air switch Weinview screen Taiwan

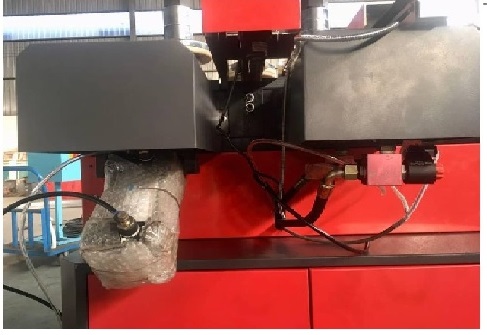

Mingwei/MW power supply Hydraulic is zoyen from Taiwan
