MASTER 3 P -COPY ROUTER


Description:

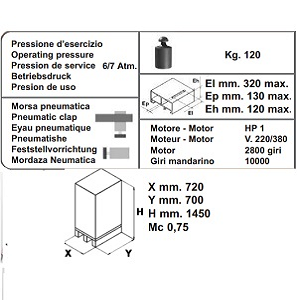

TECHNICAL DATA -

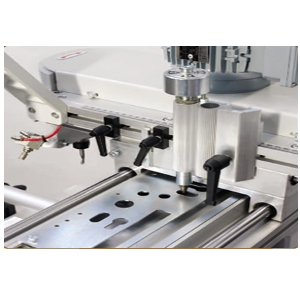

Manual single head copy router with pneumatic clamps and lubrification, with manual tracer points.

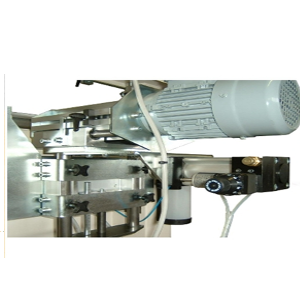

Equipped with orizontal head with 3 drilling bits for working on PVC profile.

Working capacities 360x150x140mm.

Spindle speed 13200 rpm.

Threephase motor 1HP (O.57 Kw).

Horizontal motor 0.75 HP 900 RPM (0.55 Kw).

Nr 2 manual tracer points. Working pressure 7 bar.

Overall dimensions: 950X1000X1900

Weight: 150 Kg.



STANDARD EQUIPMENT

Bit D. 8/8mm - Collet D. 8mm .

Pneumatic Clamping set - 2x

tracer points with 3 diameters: 5/8/10 mm

Copy template for standard executions - Profiles stop - Nr 2 bits D.10 - Nr 1 bits D.12

 Air Filter - Air Gun - Service spanners

OPTIONALS -
Collet D.10mm-AUTOMATIC FEEDING OF THE BORING UNIT-Bit D.10-Bit D.12 Bit diameter on request - Self centering device - Single phase motor.
