Description:
DESCRIPTION –

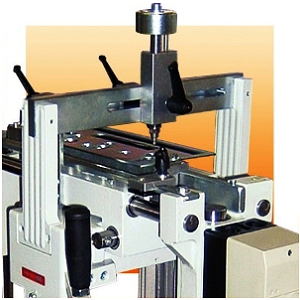

Manual single head copy router with pneumatic
clamps and lubrication with manual tracer points.
Working capacities 330x150x130mm.
Tool at 12000rpm.
Three phase motor 1HP. Air pressure 6bar.
STANDARD EQUIPMENT –
- Collet 8mm
- Pneumatic clamping set
- Tracer point with 3 diameters:5/8/10mm
- Copy template for standard executions
profile stop.
Specification:
TECHNICAL DATA:
- Manual single head copy router with pneumatic clamps and lubrication.
- Equipped with nr.1 manual tracer point.
- Working capacities 200x120x110mm
- Tool at 10000rpm
- Three phase motor 0.5HP
- Air pressure 6 bar
OPTIONAL –
- Collet 10mm
- Emulsified cutting oil 20lt
- Single phase motor
