Description:

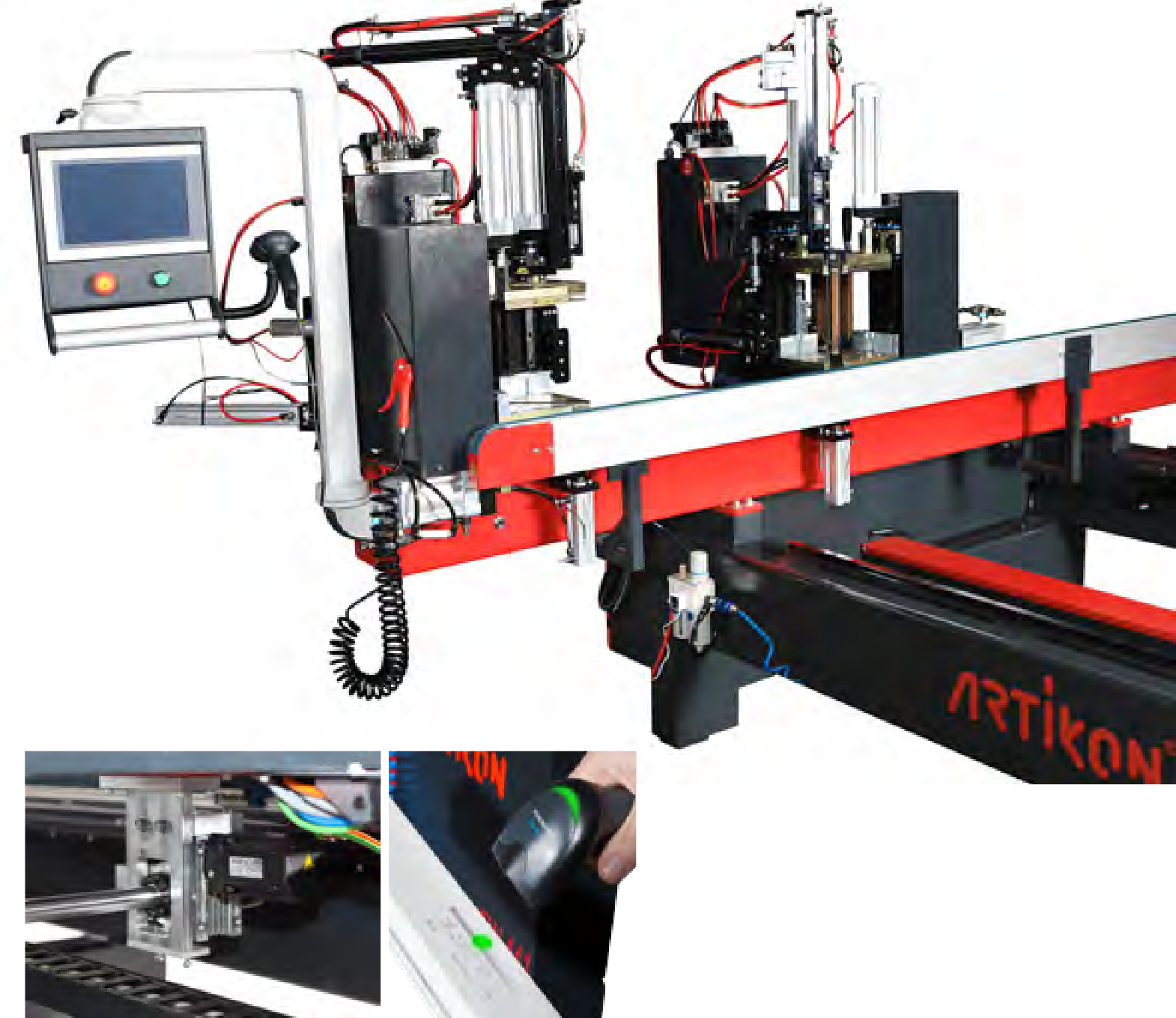

Used to weld four corners of PVC profiles at 90° at the same time
12” touch screen panel
CNC control system (3 axes)
Resistance teflon wrapping system
Possibility for 0.2 mm welding for all profile types
Automatic mould opening system makes the welding seams thinner at separating
point. Also easy change mould system.
Possibility to follow the process of heating the resistance (programming for different
profiles)
Tender measurement system
240 - 250 frames / 8 hours

OPTIONS
Barcode system
Gasket clamp system
Welding moulds
Can be performed according the working position (reverse or direct line)
Preheating system for cold profile in winter time.
