Description:

DESCRIPTION -

Relevence with CE standards

Asemi - automatic CNC machine designed to clean the burrs formed after welding of door frame and other 90 degree welded profiles

The procces of cleaning the lower,upper and outer surface of the independent profile

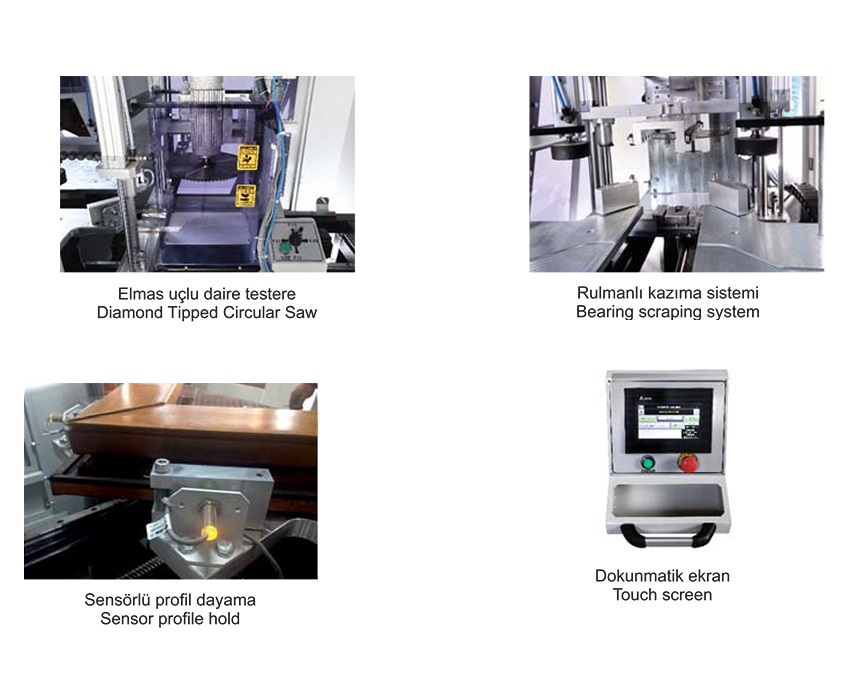

Touch screen panel

Easy memory operation

User-adjustable proccessing speeds

Easy to write program to be cleaned with special program in the machine

No control system with PLC unit

Easy to create and fine-tune at y-z axis with the joystick wristwatch

The average machine time in one corner of the machine is 5-8 seconds.

400 500 frmae cleaning facilities for 8 hourse average operation

Ulimited programe load memory

Daily monthly production report dashboard

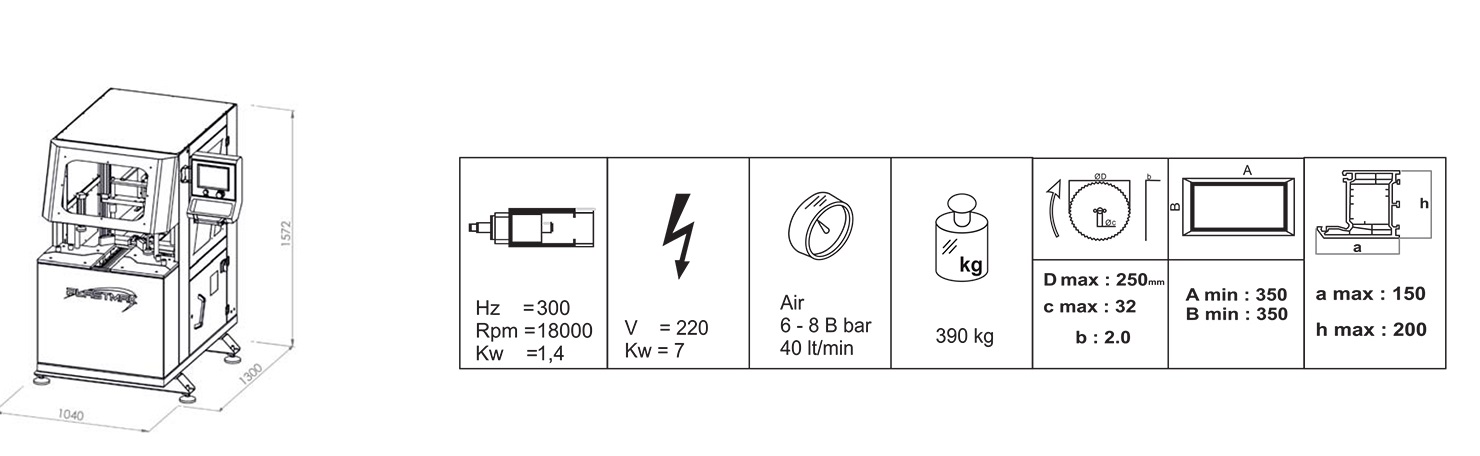

There are 2 servo and 1 spindle engine in the machine

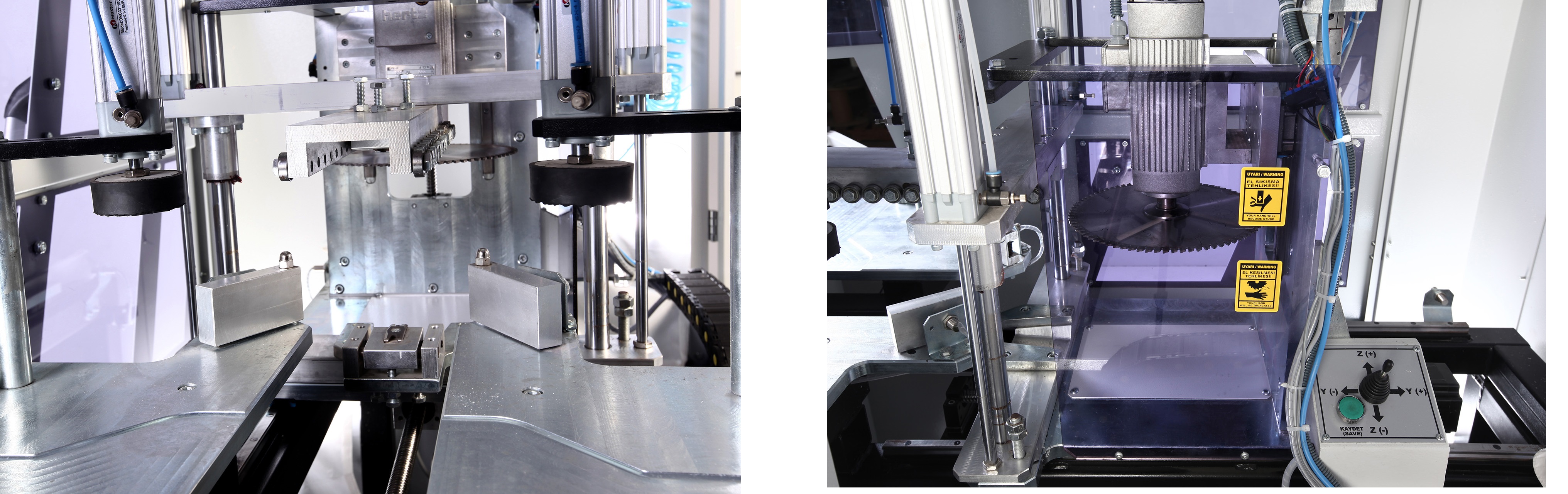

250mm diamond head saw

All pvc profiles have angular and radial making and circular interpolation movement

Pre-brush to prevent scratching of the profile thanks to the system to provides comfort at the time of movement

power 440v, 3ph.
