A FEW FEATURES: - 7 touch screen display operator interface and push buttons for all functions of the sawing machine. It is simple and intuitive , it guarantees a reliable use and it controls all cutting parameters in real time.

Console with all centralized controls, installed on an articulated arm to follow the operator in every operating position for the controls and the EMERGENCY. - Visualization and registration of alarms and events with the possibility to visualize the story of occurred events.

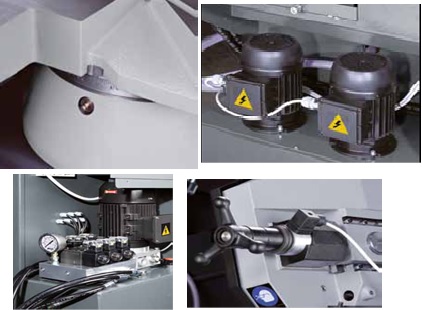

 Electronic inverter for the continuous adjustment of the band speed from 15 to 100 m/min. - Latest generation hydraulic control unit, with high efficiency and low energy consumption.

Bar feeder with recirculating balls screw/nut and stepper motor (feed in length in one stroke 600 mm, that can be repeated in order to cut any length).

 Cutting head and feeding vice positioning with joystick.

Automatic acquisition of the actual starting point of the cut.

 Electronic transducer to visualize band tensioning.

 Automatic adaptive shearing stress control system with servo valve mounted directly on the cylinder.

Coolant tank inside the steel base with two electric pumps so as to lubro-refrigerate band. The drawer to collect chips can be replaced with a motorized chip evacuator (see optionals).

Preset to be equipped with the spray mist system (OPTIONAL), as well as with the standard delivered traditional lubrication with emulsible oil.

Wire chip brush for band cleaning.

Machine arranged for handling with movement equipment.

Bi-metal band for solids and sections.

ervice keys and instructions manual for maintenance and spare parts list .
