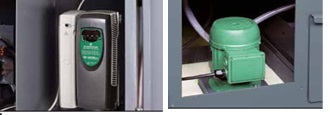

A FEW FEATURES: - Panel with low tension controls: polyestermembrane keypad with tactile thermo-shapebuttons which give out an acoustic signal when pressed - Display: 16 characters read on two lines so as to visualize technological parameters such as:+ band speed + number of cuts programmed and carried out + cutting time + amperometer + diagnostics and/or caution messages (more than 100) visualized. - Registration of alarms and events with the possibility to visualize the story of occurred events. - Transmission system at 3 stages to guarantee high sturdiness, precision and obtain high removal capacities. - Blade rotation with one speed motor with electronic speed variator so as to cut from 15 up to 150 rpm to obtain the best cutting efficiency. - Sawing head movement on double linear guides with preloaded slides with recirculating ball screws. - Coaxial cylinder with bypass valve for fast approach and linear transducer for head position reading. - The headstroke, according to the dimensions of the material which has to be cut, is set directly from the control panel. - Rotation pin with preloaded thrust bearing to grant rotation precision and stability. - Accuracy graduation etched on the rotating table. - Easily movable vice unit with fast, safe and accurate locking on the whole machine width. - Pneumatic locking vice with adjustable steel gib. - Pneumatic vertical vice. - Wire chip brush for band cleaning. - Steel base with chip drawer and removable coolant tray. - Electric pump for the blade lubrication and cooling. - Anti-burr device with double locking system of the stock. - HSS blade 350x32x2.5 for solids or sections. - Adjustable rod to measure stop to make cuts of the same length with millimetred steel rod. - Preset to be equipped with the spray mist system (OPTIONAL), as well as with the standard delivered traditional lubrication with emulsible oil. - Service keys and instructions manual for maintenance and spare parts list.
