TOP 800 UPSTROKE SAW

Country:

Description:

DESCRIPTION :

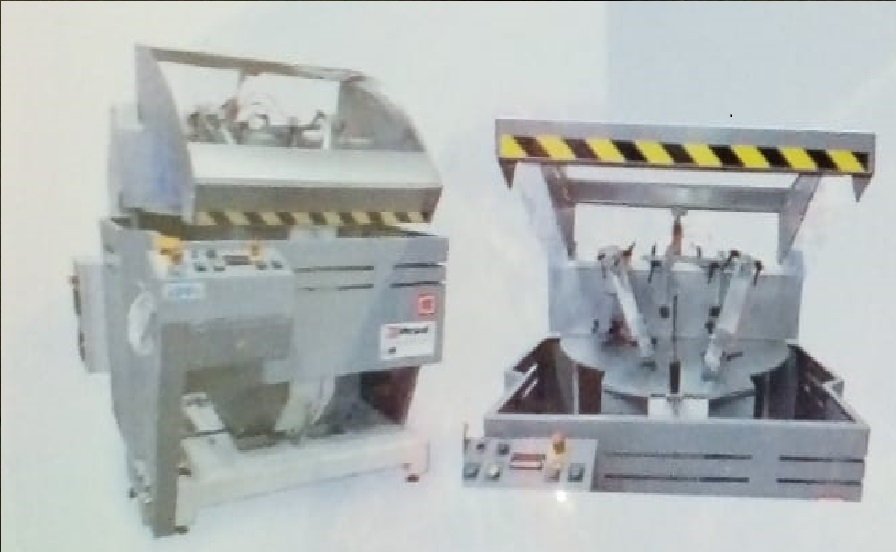

TOP 800 UPCUT MITER SAW

The TOP 800 is a single head upcut miter saw complete
with a 800mm carbide tipped blade for precision cutting
of Aluminum and PVC material.

The fully adjustable blade
advancement system lets you control the stroke of the hydropneumatic
cylinder, rotation of the table is manual with fixed stops at 45/90/135, intermediate positions from 22.5 on the right to 157.5 on the left by pneumatic locking.

This machine is equipped with a digital angle display for easy operator use.

The start cycle of the blade is determined through an inverter, which allows the set up of blade advancement only when the desired RPM is reached this device allows obtaining both a better starting and stopping of the blade.

The machine is designed to perform cuts of large sized profiles, in aluminum, PVC and non ferrous metals.

The upward movement of the blade cuts with little pressure on the profile and facilitates precise and accurate cuttings.

Dust collection can be achieved through the evacuation port located on the rear of the machine.

Specification
Video

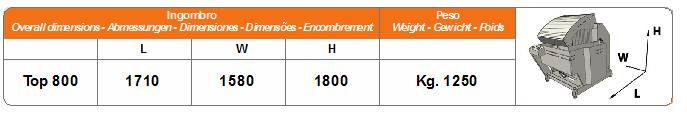

TECHNICAL SPECIFICATIONS:

• Carbide saw blade Ø800 mm
• Hydro-pneumatic blade feeding
• Full, pneumatic actuated, protection enclosure
• N.2 Horizontal clamps
• N.2 Vertical clamps
• Pneumatic mist spray
• Motor 7,5 kW

OPTIONS:

• Microdrop lubrication with pure oil
• Servo controlled angle positioning (TOP 800 GE)
